50 Series Manually Operated Pneumatic Valves, Up To 16 SCFM & 150 PSI
Description & Features
| Actuators | Hand Lever, Palm Button, Manual Bleed. |
| Application | Low to moderate flow applications requiring manual valve operation. |
| Features | Compact size. |
| Flow Rating | Based on 100 PSIG input and 85 PSIG output. |
| Lubrication | Valves use O-ring seals. For maximum performance and life expectancy, standard air line lubrication should be used. |
| Materials | Extruded aluminum body. Steel spool (Hand Lever and Palm Button). Aluminum spool (Manual Bleed). Buna-N spool seals. |
| Operating Pressure Range | 20-150 PSI. |
| Temperature Range | -10°F to 180°F. |
Products
| Model Number | Actuator Type | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Price | Action |
|---|---|---|---|---|---|---|---|---|

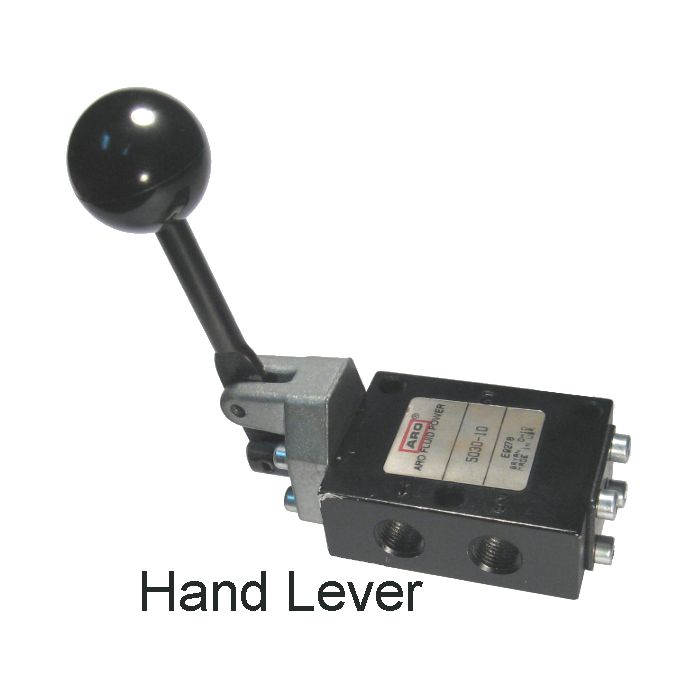

5030-10 50 Series Manual Pneumatic Valve |
Hand Lever |
3-way 2-position |
Manual Return |
1/8 NPT (Side) |
16 |
0.4300 |
|
