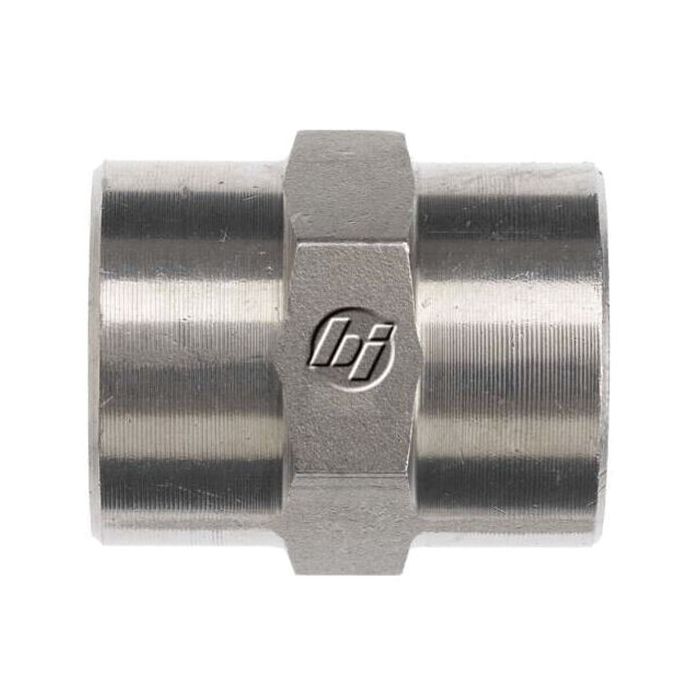

SS 1/8" F-PIPE X 1/8" F-PIPE COUPLING

Rated to 6,000 PSI maximum dynamic pressure, the SS 1/8" F-PIPE X 1/8" F-PIPE Coupling is a straight stainless steel union fitting designed for inline connections between two female-threaded lines. Both ends feature 1/8"-27 Female NPTF threads conforming to SAE J476, providing a dry-seal mechanical connection that resists leakage under pressure without relying solely on thread sealant.

Constructed from stainless steel, this Brennan Series 5000 coupling suits applications where corrosion resistance is a priority. The compact straight configuration makes it well suited for tight installations where a direct, low-profile union between two female pipe ends is required.

SKU: 5000-02-02-SS

Supplier Part Number (MPN): 5000-02-02-SS

Alternate Part Numbers: AHC-1/8, SS-5000-02-02
