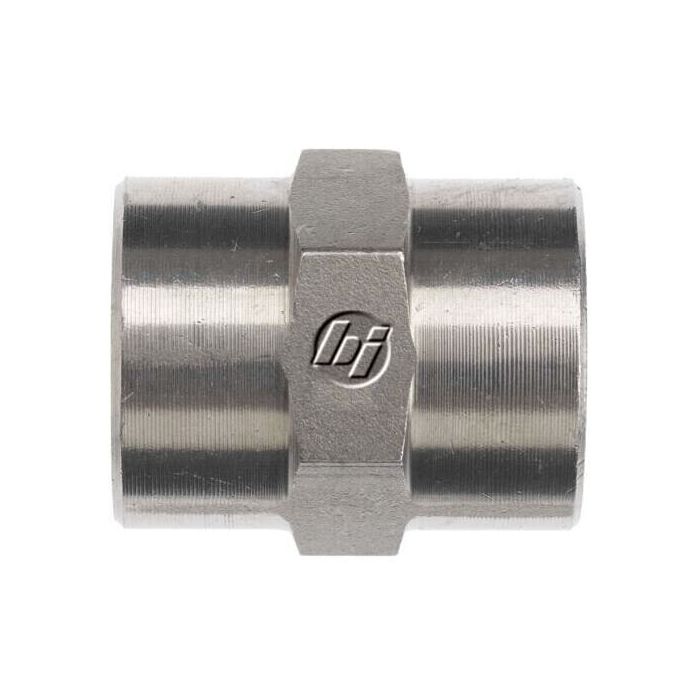

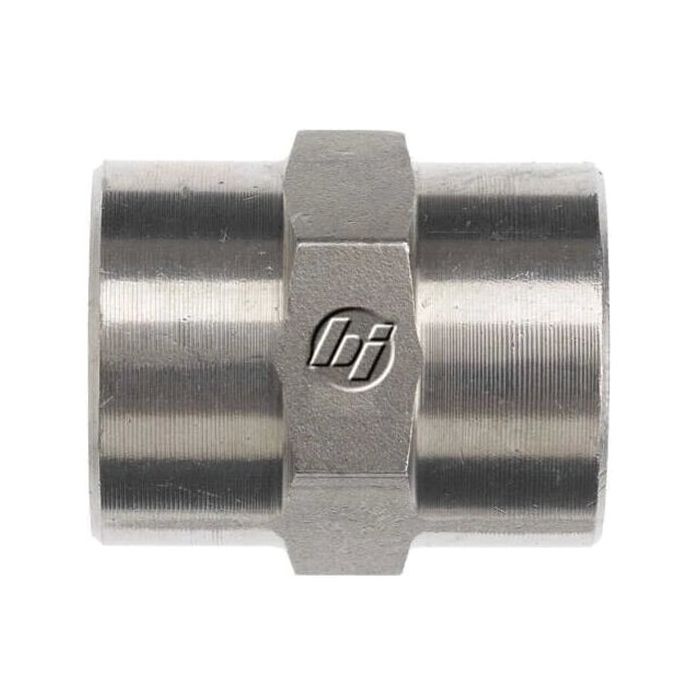

04FP-04FP STRAIGHT

Description & Features

The 04FP-04FP Straight from Brennan Industries Inc is a high-quality adapter designed for specific industrial applications. This product ensures effective fluid transfer under demanding conditions.

Constructed from straight steel, this adapter can withstand a maximum dynamic pressure of 6,000 psi. The adapter features female NPTF threads on both ends, sized at 1/4-18, compliant with SAE J476 specifications.

With a total length of 1.130 mm, it integrates seamlessly into various systems requiring robust and reliable connections. The thread drill diameter is precisely 0.281 mm, enhancing compatibility and performance.

Supplier Part Number: 5000-04-04

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.13 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5000 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02FP-02FP STRAIGHT

5000-02-02

1/8 in

1/8 in

1/8-27

5/8 in

#4 FP X #2 FP (RIGID) COUPLER

5000-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

3/4 in

Steel Adapter, 3/8-18 Female NPT To 1/8-27 Female NPT, Straight

5000-06-02 Steel Female NPT Straight Union

3/8 in

1/8 in

3/8-18, 1/8-27

7/8 in

Steel Adapter, 3/8-18 Female NPT To 1/4-18 Female NPT, Straight

5000-06-04 Steel Female NPT Straight Union

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06FP-06FP STRAIGHT

5000-06-06

3/8 in

3/8 in

3/8-18

7/8 in

Steel Adapter, 1/2-14 Female NPT To 1/4-18 Female NPT, Straight

5000-08-04 Steel Female NPT Straight Union

1/2 in

1/4 in

1/2-14 x 1/4-18

1-1/8 in

Steel Adapter, 1/2-14 Female NPT To 3/8-18 Female NPT, Straight

5000-08-06 Steel Female NPT Straight Union

1/2 in

3/8 in

1/2-14 x 3/8-18

1-1/8 in

08FP-08FP STRAIGHT

5000-08-08

1/2 in

1/2 in

1/2-14

1-1/8 in

12FP-04FP STRAIGHT

5000-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-3/8 in

12FP-06FP STRAIGHT

5000-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-3/8 in

Steel Adapter, 3/4-14 Female NPT To 1/2-14 Female NPT, Straight

5000-12-08 Steel Female NPT Straight Union

3/4 in

1/2 in

3/4-14 x 1/2-14

1-3/8 in

12FP-12FP STRAIGHT

5000-12-12

3/4 in

3/4 in

3/4-14

1-3/8 in

16FP-08FP STRAIGHT

5000-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-5/8

16FP-12FP STRAIGHT

5000-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-5/8

16FP-16FP STRAIGHT

5000-16-16

1 in

1 in

1-11-1/2

1-5/8

20FP-16FP STRAIGHT

5000-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

2 in

20FP-20FP STRAIGHT

5000-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

2 in

24FP-24FP STRAIGHT

5000-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2.38 in

32FP-32FP STAIGHT

5000-32-32

2 in

2 in

2-11-1/2

2-7/8 in

Product Questions & Answers (3)

Question by: Jerry R on May 6, 2025, 1:35 PM
trying to hook two 1/4-18 female nptf ports together, is that what this adapter does?
Answer by: Customer Support on May 7, 2025, 3:07 PM
It connects female NPTF threads on both ends, and both sides are 1/4-18 per SAE J476. If your two ports are 1/4-18 female NPTF, this is the straight female to female adapter for that connection.
Question by: Eddie A on Mar 15, 2026, 3:33 PM
Reckon this would hold up okay for a hydraulic log splitter?
Answer by: Customer Support on Mar 17, 2026, 6:55 AM
Designed to handle dynamic pressures up to 6,000 psi, this adapter should be suitable for many log splitter applications, but always double-check your equipment's pressure requirements to ensure compatibility.
Question by: Ross M on May 27, 2025, 3:09 PM
both ends are female NPTF on this thing? just want to make sure before i order, got a 1/4-18 fitting on each side of a line i'm trying to connect
Answer by: Customer Support on May 29, 2025, 6:20 AM
Correct on both counts. Each end carries a 1/4-18 female NPTF thread, and both conform to SAE J476. So if you've got male NPTF fittings on each side of that line, this straight adapter should tie them together without any thread mismatch.
