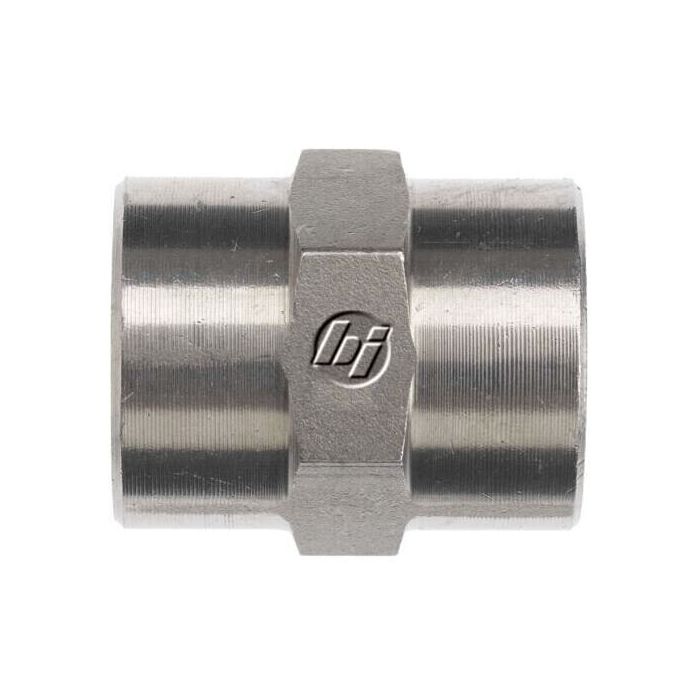

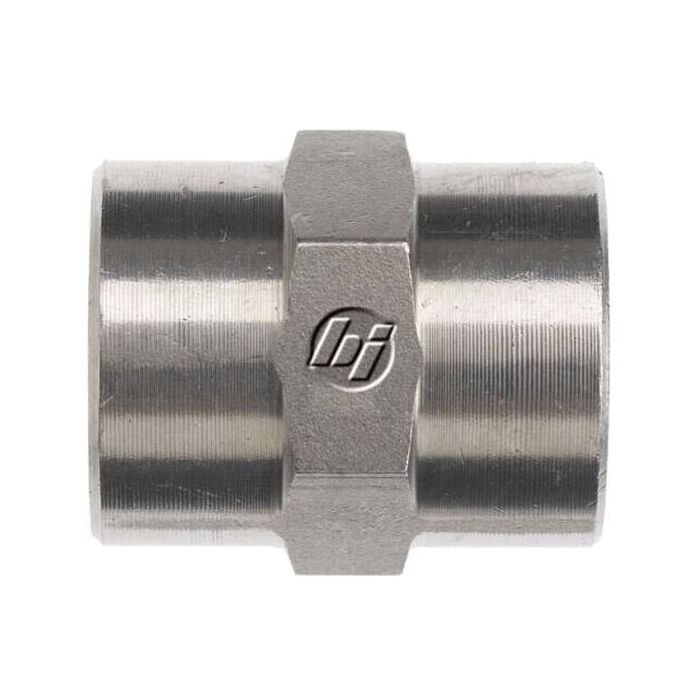

main product photo

06FP-06FP STRAIGHT STNLS

Ask A Question

Description & Features

Crafted from high-quality straight stainless steel the 06FP-06FP Straight Stnls by Brennan Industries Inc is designed for industrial applications that require reliability and durability. This connector features a maximum dynamic pressure rating of 6 000 psi making it suitable for high-pressure environments.

The overall length of the connector is 1.130 mm while both thread B1 and thread B2 specifications adhere to SAE J476 standards. The 3/8-18 female NPTF threading ensures compatibility with a wide range of industrial components.

The cubic inch space for this component is 0.865 efficiently designed for compact spaces. The raw material used in its construction is straight stainless steel providing robust performance under demanding conditions.

Supplier Part Number: 5000-06-06-SS

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
0.865 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.13 in L
Fitting Type
Adapter
Hex Size
7/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
5000 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Product Questions & Answers (3)

Question by: Kurt T on Jan 18, 2026, 6:47 AM
trying to replace an old straight coupler, are both ends on this one 3/8-18 female nptf?
Answer by: Customer Support on Jan 19, 2026, 8:04 PM
Both ports are 3/8-18 female NPTF threads, and the thread spec on each end is SAE J476, so it is a straight female to female NPTF connector.
Question by: Bobby G on Aug 28, 2025, 6:40 AM
Got some 3/8-18 NPTF fittings on both ends of a connection I need to make, will this straight coupler tie em together without any adapters in between?
Answer by: Customer Support on Aug 30, 2025, 6:16 AM
Both threaded ends on this fitting are 3/8-18 female NPTF, so yeah, if you've got male NPTF threads on both sides of your connection, this drops right in without needing anything extra. Both threads conform to SAE J476, so you're working within a well-established standard. Just make sure your existing fittings are male NPTF at 3/8-18 on both sides and you're set.
Question by: Phil M on Sep 12, 2025, 7:11 AM
So, this is just a straight connector, right? No bends or anything?
Answer by: Customer Support on Sep 13, 2025, 2:13 PM
That's correct. Crafted from straight stainless steel, this connector from Brennan Industries is designed for direct, inline connections.
