08FP-08FP STRAIGHT

Description & Features

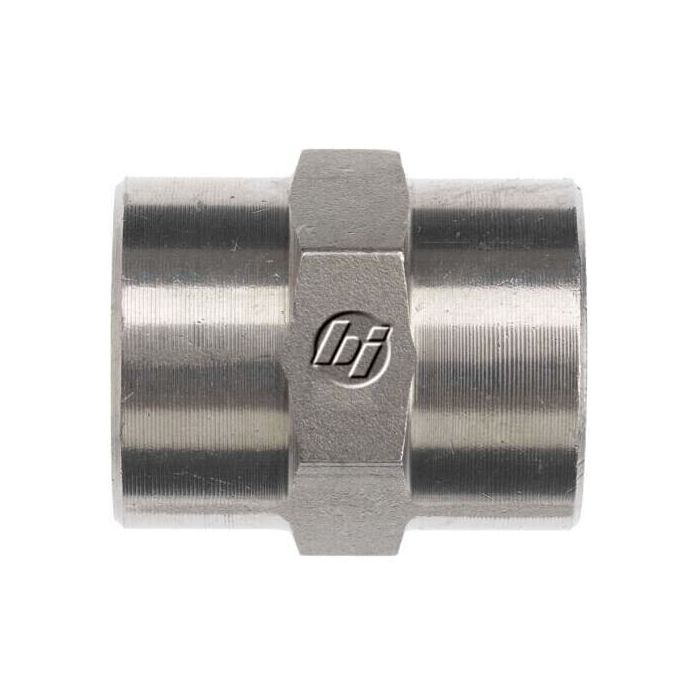

Manufactured by Brennan Industries Inc, the 08FP-08FP Straight adapter is engineered to meet high standards of quality and durability. This component is constructed from straight steel, guaranteeing reliability and long service life in demanding environments.

The adapter supports a maximum dynamic pressure of 5,000 Psi and features dual Female NPTF threads conforming to SAE J476 specifications, each with a size of 1/2-14. With an overall length of 1.500 mm, it fits seamlessly into various industrial applications.

The series 5000 design ensures compatibility and ease of installation, making it a versatile choice for professionals. Both Thread B1 and Thread B2 have a drill diameter of 0.531 mm, extending the range of its use in precise specifications.

Supplier Part Number: 5000-08-08

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type FNPT	Connection Type 1 Female SAE NPTF	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 1-1/2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 5000 Series	Thread 2 Drill Dimensions 0.531 in	Thread B1 Drill Dimensions 0.531 in	Thread Size 1/2-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000-02-02	1/8 in	1/8 in	1/8-27	5/8 in
5000-04-02	1/4 in	1/8 in	1/4-18 x 1/8-27	3/4 in
5000-04-04	1/4 in	1/4 in	1/4-18	3/4 in
5000-06-02 Steel Female NPT Straight Union	3/8 in	1/8 in	3/8-18, 1/8-27	7/8 in
5000-06-04 Steel Female NPT Straight Union	3/8 in	1/4 in	3/8-18 x 1/4-18	7/8 in
5000-06-06	3/8 in	3/8 in	3/8-18	7/8 in
5000-08-04 Steel Female NPT Straight Union	1/2 in	1/4 in	1/2-14 x 1/4-18	1-1/8 in
5000-08-06 Steel Female NPT Straight Union	1/2 in	3/8 in	1/2-14 x 3/8-18	1-1/8 in
5000-12-04	3/4 in	1/4 in	3/4-14, 1/4-18	1-3/8 in
5000-12-06	3/4 in	3/8 in	3/4-14 x 3/8-18	1-3/8 in
5000-12-08 Steel Female NPT Straight Union	3/4 in	1/2 in	3/4-14 x 1/2-14	1-3/8 in
5000-12-12	3/4 in	3/4 in	3/4-14	1-3/8 in
5000-16-08	1 in	1/2 in	1-11-1/2 x 1/2-14	1-5/8
5000-16-12	1 in	3/4 in	1-11-1/2 x 3/4-14	1-5/8
5000-16-16	1 in	1 in	1-11-1/2	1-5/8
5000-20-16	1-1/4 in	1 in	1-1/4-11-1/2 x 1-11-1/2	2 in
5000-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2	2 in
5000-24-24	1-1/2 in	1-1/2 in	1-1/2-11-1/2	2.38 in
5000-32-32	2 in	2 in	2-11-1/2	2-7/8 in

Product Questions & Answers (1)

Question by: Cody J on Jan 31, 2026, 9:54 PM

got two 1/2-14 female nptf ports i need to tie together, is this the right straight coupler for that?

Answer by: Customer Support on Feb 2, 2026, 6:28 AM

For joining two male 1/2-14 NPTF connections in a straight run, this adapter matches up with dual Female NPTF threads, both 1/2-14, built to the SAE J476 thread spec.
