12FP-12FP STRAIGHT BRASS

Description & Features

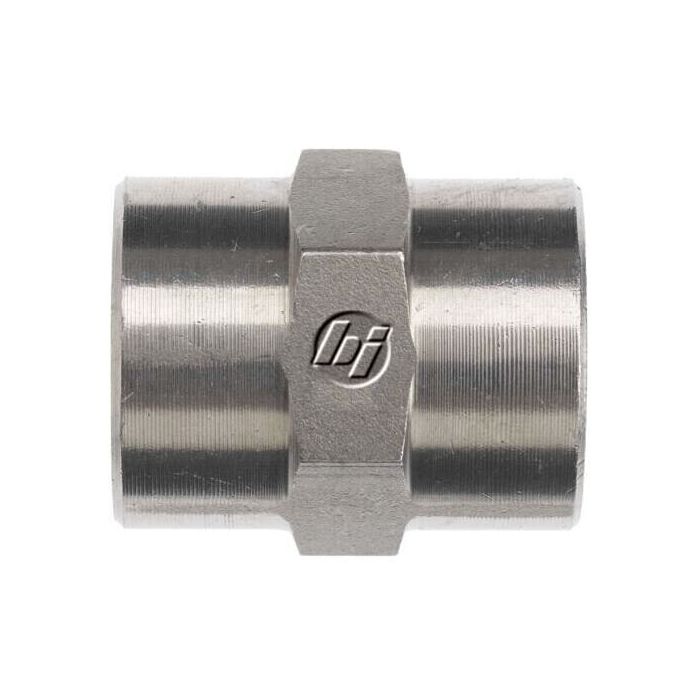

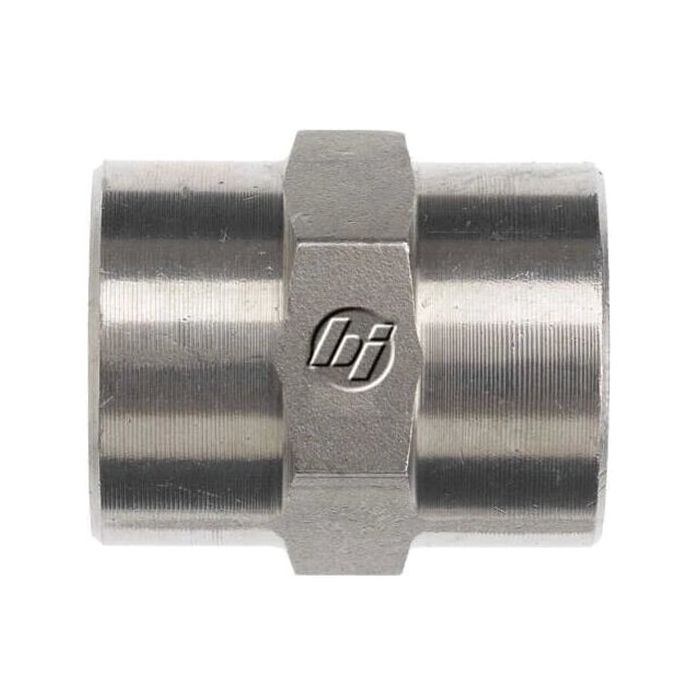

Constructed from brass and conforming to SAE J476, this straight union fitting connects two 3/4-14 Female NPTF threaded lines in a direct inline configuration. Both ends share identical thread specifications, making it a symmetrical union suited for joining same-size NPTF connections without adapting between different thread types or sizes.

The 12FP-12FP Straight Brass fitting is part of Brennan Industries' Series 5000 and is manufactured from brass raw material, offering reasonable corrosion resistance in fluid handling circuits where brass compatibility is required. With an overall length of 1.530 mm and a thread drill dimension of 0.719 mm at both ends, this fitting is compact and consistent across both connection points. California residents should note that this product is subject to a Proposition 65 warning.

SKU: 5000-12-12-B

Supplier Part Number (MPN): 5000-12-12-B

Specifications

Brand BRENNAN	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type FNPT	Connection Type 1 Female SAE NPTF	Connection Type 2 Female SAE NPTF	Cubic Inch Space L x W x H Dimensions 2.893 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 1.53 in L	Fitting Type Adapter	Hex Size 1-3/8 in	Material Brass	Material Construction Forged Brass	Series 5000 Series	Thread 2 Drill Dimensions 0.719 in	Thread B1 Drill Dimensions 0.719 in	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Lynn T on Jul 15, 2025, 8:38 AM

Reckon this'll hold up alright with hydraulic fluid runnin' through it, or is it more for somethin' else?

Answer by: Customer Support on Jul 17, 2025, 6:08 AM

This straight brass fitting is constructed from brass raw material, offering reasonable corrosion resistance in fluid handling circuits where brass compatibility is required, so it should work well with hydraulic fluid.
