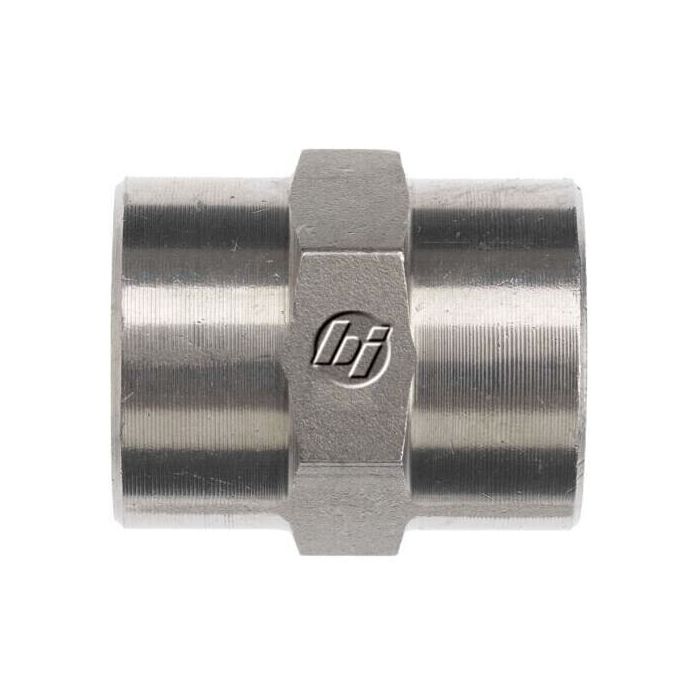

12FP-12FP STRAIGHT STNLS

Ask A Question

Description & Features

This straight fitting features two female NPTF 3/4-14 threads and is crafted from durable stainless steel, ensuring reliable performance in demanding hydraulic applications. With a maximum dynamic pressure rating of 4,000 PSI, it is designed for secure and robust connections.

The 12FP-12FP STRAIGHT STNLS is part of the 5000 series from Brennan Industries, offering a cubic inch space of 2.893 and an overall length of 1.530 mm. This fitting is ideal for creating leak-free connections in hydraulic systems.

SKU: 5000-12-12-SS

Supplier Part Number (MPN): 5000-12-12-SS

Alternate Part Numbers: AHC-3/4

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.893 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.53 in L
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
5000 Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14

Product Questions & Answers (1)

Question by: Warren F on Dec 1, 2025, 8:26 AM
Will this fitting hold up if I'm running it constantly at its max pressure rating?
Answer by: Customer Support on Dec 2, 2025, 1:04 PM
Designed to handle dynamic pressures up to 4,000 PSI, this fitting is made from stainless steel, which should provide reliable performance even under continuous use at its maximum rating.
