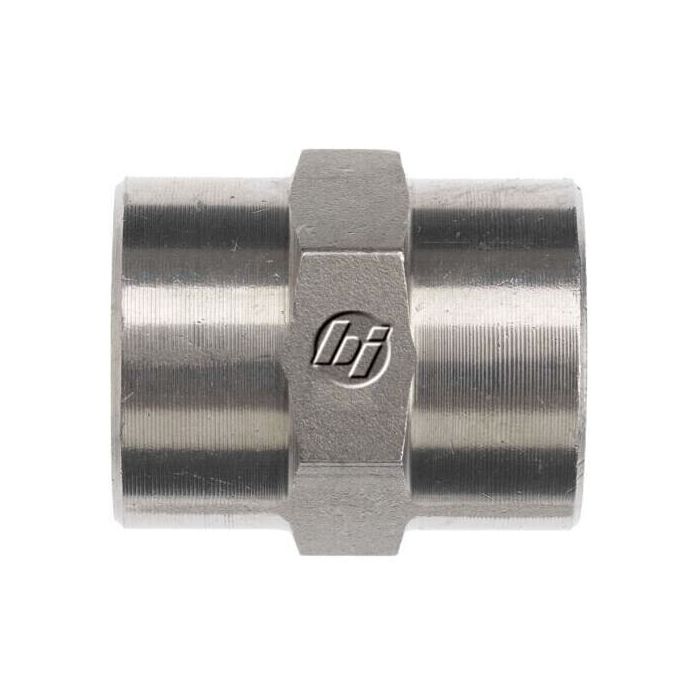

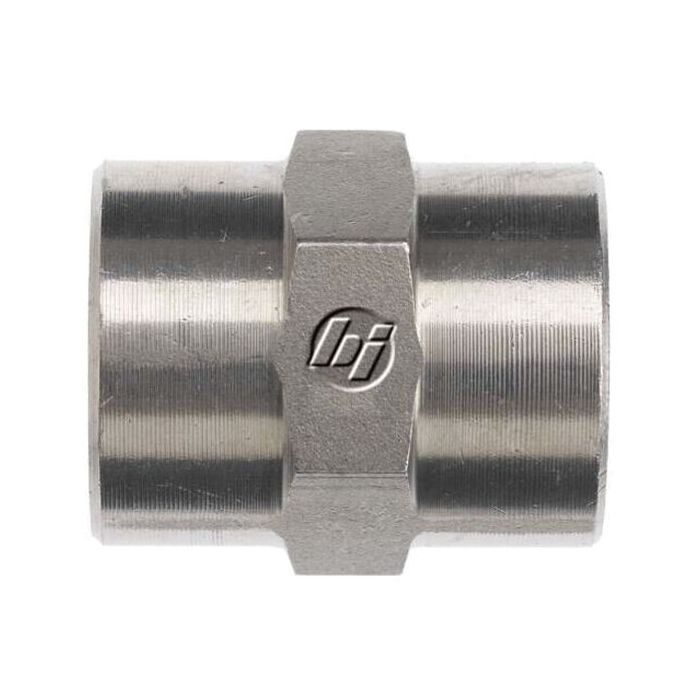

16FP-08FP STRAIGHT

Constructed from straight steel, the 16FP-08FP Straight is a reducing pipe fitting from Brennan Industries' 5000 Series, designed to connect two female NPTF threaded ports of different sizes within a single inline assembly. The larger end carries a 1-11½ thread (B1), while the smaller end accepts a 1/2-14 thread (B2), with both ends conforming to SAE J476 specifications. This size reduction capability makes it well suited for hydraulic circuits where line sizes transition between components.

Rated to 3,000 PSI maximum dynamic pressure, this fitting handles demanding hydraulic service conditions. The female NPTF thread form on both ports provides a pressure-tight mechanical seal without the need for additional thread sealant in many applications. Overall length is 1.890 mm, keeping the installed footprint compact in tight assemblies.

California residents: This product is subject to a Prop 65 warning per Brennan Industries' compliance labeling.

SKU: 5000-16-08

Supplier Part Number (MPN): 5000-16-08

Alternate Part Numbers: A2096-16-8S
