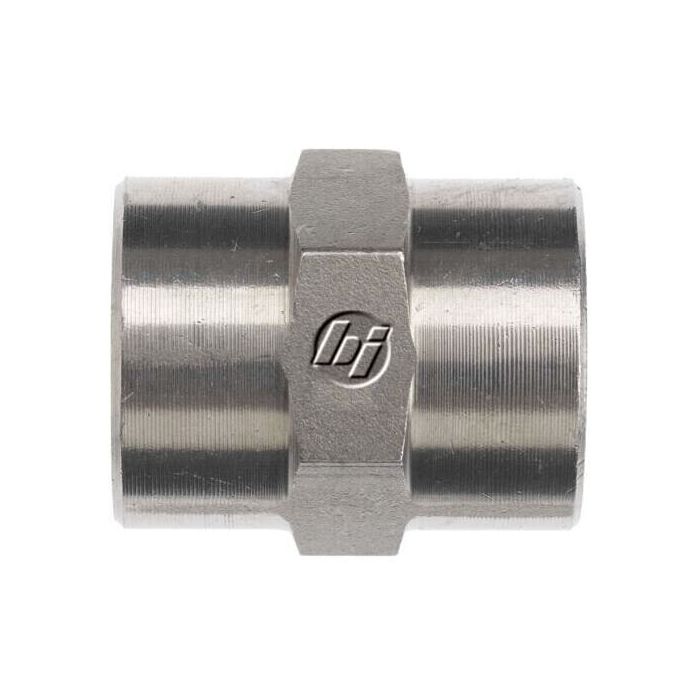

main product photo

16FP-16FP STRAIGHT STNLS

Ask A Question

Description & Features

Constructed from stainless steel, the 16FP-16FP Straight Stnls is a straight-pattern hydraulic adapter rated for dynamic pressures up to 3,000 PSI. Both ends feature 1-11½ Female NPTF threads conforming to SAE J476, making this a union-style fitting suited for connecting two female-threaded ports in a straight-line configuration.

Brennan Industries' Series 5000 construction in stainless steel offers reliable corrosion resistance for hydraulic and fluid power systems where environmental exposure or media compatibility is a consideration. The fitting has an overall length of 1.890 mm and a thread drill diameter of 0.938 mm on both ends, with identical thread geometry at each port for straightforward installation.

SKU: 5000-16-16-SS

Supplier Part Number (MPN): 5000-16-16-SS

Alternate Part Numbers: AHC-1, SS-5000-16-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.991 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.89 in L
Fitting Type
Adapter
Hex Size
1-5/8
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
3600 psi
Series
5000 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (1)

Question by: Rod C on Jun 13, 2025, 8:29 PM
Will this fitting hold up if I'm pushing 3000 psi through it on a regular basis?
Answer by: Customer Support on Jun 15, 2025, 7:33 AM
This straight adapter is rated to handle dynamic pressures up to 3,000 PSI, so it should be suitable for systems operating continuously at that pressure.
