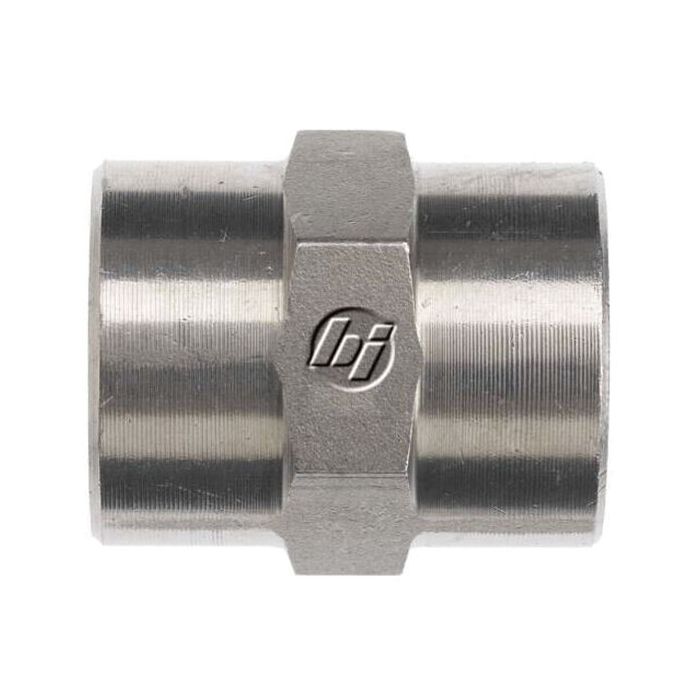

16FP-16FP STRAIGHT

Description & Features

The Brennan Industries Inc 16FP-16FP Straight adapter is designed for industrial applications that require a reliable connection. Constructed from straight steel it ensures durability and consistent performance under maximum dynamic pressure up to 3 000 psi.

This product features a female NPTF thread type on both ends adhering to SAE J476 specifications making it compatible with various industrial setups. The threads B1 and B2 are sized at 1-11-1/2 with a drill measurement of 0.938 mm.

Measuring 1.890 mm in overall length this adapter is part of the 5000 series offering high-quality standards suitable for demanding environments.

MPN: 5000-16-16

Supplier Part Number: 5000-16-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.991 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.89 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-5/8
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5000 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02FP-02FP STRAIGHT

5000-02-02

1/8 in

1/8 in

1/8-27

5/8 in

#4 FP X #2 FP (RIGID) COUPLER

5000-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

3/4 in

04FP-04FP STRAIGHT

5000-04-04

1/4 in

1/4 in

1/4-18

3/4 in

Steel Adapter, 3/8-18 Female NPT To 1/8-27 Female NPT, Straight

5000-06-02 Steel Female NPT Straight Union

3/8 in

1/8 in

3/8-18, 1/8-27

7/8 in

Steel Adapter, 3/8-18 Female NPT To 1/4-18 Female NPT, Straight

5000-06-04 Steel Female NPT Straight Union

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06FP-06FP STRAIGHT

5000-06-06

3/8 in

3/8 in

3/8-18

7/8 in

Steel Adapter, 1/2-14 Female NPT To 1/4-18 Female NPT, Straight

5000-08-04 Steel Female NPT Straight Union

1/2 in

1/4 in

1/2-14 x 1/4-18

1-1/8 in

Steel Adapter, 1/2-14 Female NPT To 3/8-18 Female NPT, Straight

5000-08-06 Steel Female NPT Straight Union

1/2 in

3/8 in

1/2-14 x 3/8-18

1-1/8 in

08FP-08FP STRAIGHT

5000-08-08

1/2 in

1/2 in

1/2-14

1-1/8 in

12FP-04FP STRAIGHT

5000-12-04

3/4 in

1/4 in

3/4-14, 1/4-18

1-3/8 in

12FP-06FP STRAIGHT

5000-12-06

3/4 in

3/8 in

3/4-14 x 3/8-18

1-3/8 in

Steel Adapter, 3/4-14 Female NPT To 1/2-14 Female NPT, Straight

5000-12-08 Steel Female NPT Straight Union

3/4 in

1/2 in

3/4-14 x 1/2-14

1-3/8 in

12FP-12FP STRAIGHT

5000-12-12

3/4 in

3/4 in

3/4-14

1-3/8 in

16FP-08FP STRAIGHT

5000-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-5/8

16FP-12FP STRAIGHT

5000-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-5/8

20FP-16FP STRAIGHT

5000-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

2 in

20FP-20FP STRAIGHT

5000-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

2 in

24FP-24FP STRAIGHT

5000-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2.38 in

32FP-32FP STAIGHT

5000-32-32

2 in

2 in

2-11-1/2

2-7/8 in

Product Questions & Answers (2)

Question by: Harvey F on Sep 21, 2025, 11:06 AM
Will this fitting work with other brands that meet SAE J476 specs?
Answer by: Customer Support on Sep 23, 2025, 6:34 AM
This adapter is manufactured to meet SAE J476 specifications on both ends, meaning it should be compatible with any other fitting adhering to the same standard.
Question by: Diane P on Nov 7, 2025, 2:59 PM
got a setup with 1-11-1/2 female NPTF on both sides. is this just a straight coupler or am i missing something
Answer by: Customer Support on Nov 8, 2025, 4:53 PM
For tying two male NPTF connections together in a straight line, this adapter is the simple straight-through option. It has female NPTF threads on both ends, both sized 1-11-1/2, built to SAE J476.
