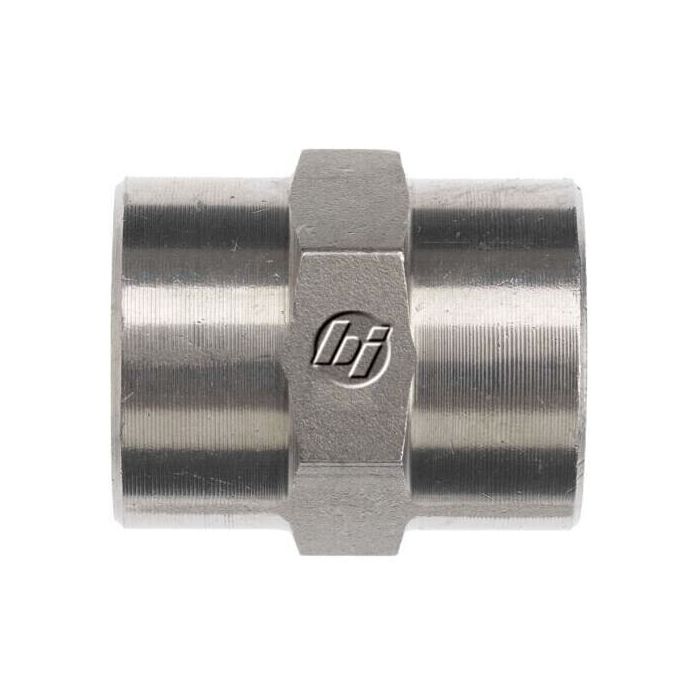

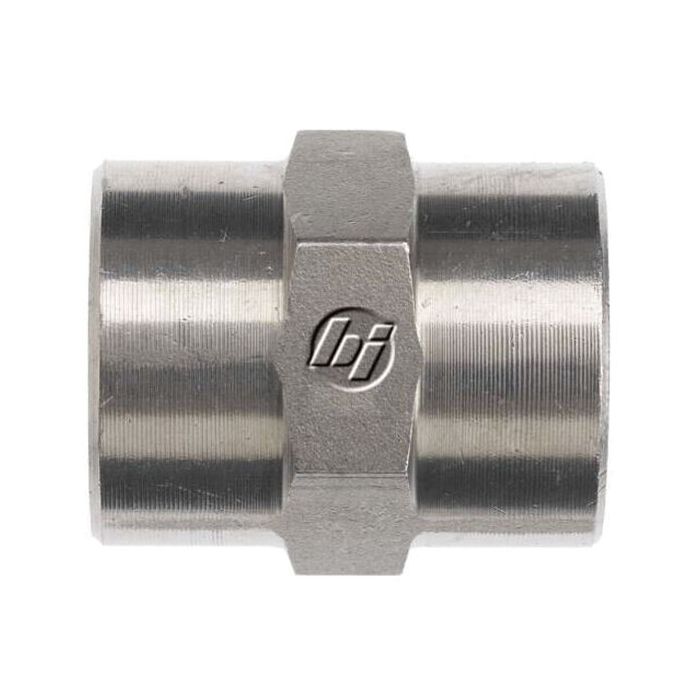

20FP-16FP STRAIGHT

Ask A Question

Description & Features

Designed for industrial hydraulic systems, this straight steel fitting offers reliable performance with a maximum dynamic pressure rating of 2,500 PSI. The 20FP-16FP STRAIGHT fitting is crafted from durable straight steel, ensuring strength and longevity in demanding environments. It features female NPTF threads on both ends, adhering to SAE J476 standards, with Thread B1 measuring 1-1/4-11-1/2 and Thread B2 at 1-11-1/2.

This product is part of the Brennan Series 5000, known for its precision and reliability in hydraulic applications. With an overall length of 1.930 mm, it is engineered to fit seamlessly into your existing hydraulic setups, optimizing space with its compact design. The fitting's versatility and compliance with industry standards make it a dependable choice for various industrial applications.

SKU: 5000-20-16

Supplier Part Number (MPN): 5000-20-16

Alternate Part Numbers: A2096-20-16S

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
7.72 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.93 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
2500 psi
Series
5000 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Product Questions & Answers (1)

Question by: Todd M on Aug 29, 2025, 3:10 PM
Can this handle 2500 PSI all day long, or is that just a max rating?
Answer by: Customer Support on Aug 31, 2025, 6:10 AM
Designed for industrial hydraulic systems, this straight steel fitting is rated for a maximum dynamic pressure of 2,500 PSI. That's the top end of what it's designed to handle.
