24FP-24FP STRAIGHT

Description & Features

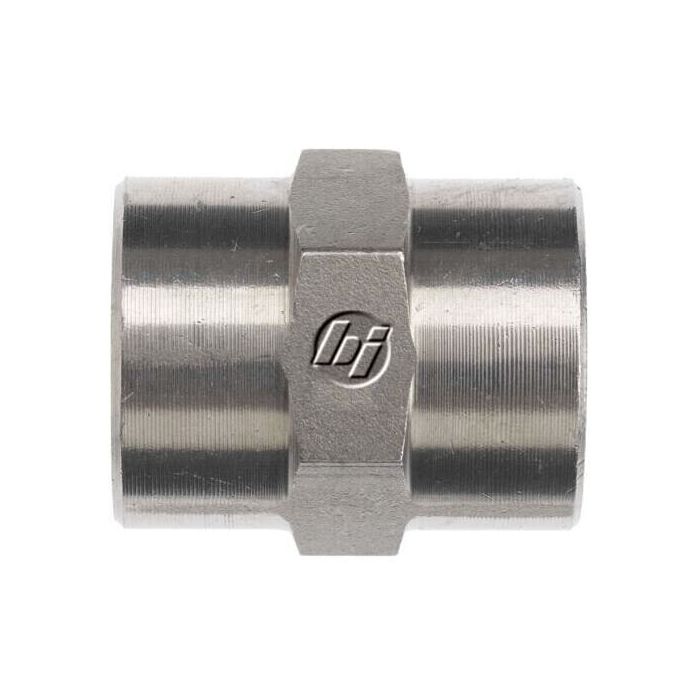

Constructed from high-quality straight steel, this durable hydraulic connector is designed for seamless integration in various industrial applications. The 24FP-24FP STRAIGHT features dual Female NPTF threads, both sized at 1-1/2-11-1/2, ensuring secure and reliable connections in your hydraulic systems. This connector adheres to the SAE J476 standard, highlighting its precision and compatibility with standardized equipment.

With a maximum dynamic pressure rating of 2,000 PSI, this connector efficiently withstands demanding operational conditions. Its compact design, measuring an overall length of 1.930 mm, optimizes space utilization while maintaining robust performance. Engineered by Brennan Industries, a leader in hydraulic components, this product offers exceptional reliability and long service life.

SKU: 5000-24-24

Supplier Part Number (MPN): 5000-24-24

Alternate Part Numbers: A2096-24S

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type FNPT	Connection Type 1 Female SAE NPTF	Connection Type 2 Female SAE NPTF	Cubic Inch Space L x W x H Dimensions 10.886 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 1.93 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2.38 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 5000 Series	Thread 2 Drill Dimensions 1.5 in	Thread B1 Drill Dimensions 1.5 in	Thread Size 1-1/2-11-1/2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000-02-02	1/8 in	1/8 in	1/8-27	5/8 in
5000-04-02	1/4 in	1/8 in	1/4-18 x 1/8-27	3/4 in
5000-04-04	1/4 in	1/4 in	1/4-18	3/4 in
5000-06-02 Steel Female NPT Straight Union	3/8 in	1/8 in	3/8-18, 1/8-27	7/8 in
5000-06-04 Steel Female NPT Straight Union	3/8 in	1/4 in	3/8-18 x 1/4-18	7/8 in
5000-06-06	3/8 in	3/8 in	3/8-18	7/8 in
5000-08-04 Steel Female NPT Straight Union	1/2 in	1/4 in	1/2-14 x 1/4-18	1-1/8 in
5000-08-06 Steel Female NPT Straight Union	1/2 in	3/8 in	1/2-14 x 3/8-18	1-1/8 in
5000-08-08	1/2 in	1/2 in	1/2-14	1-1/8 in
5000-12-04	3/4 in	1/4 in	3/4-14, 1/4-18	1-3/8 in
5000-12-06	3/4 in	3/8 in	3/4-14 x 3/8-18	1-3/8 in
5000-12-08 Steel Female NPT Straight Union	3/4 in	1/2 in	3/4-14 x 1/2-14	1-3/8 in
5000-12-12	3/4 in	3/4 in	3/4-14	1-3/8 in
5000-16-08	1 in	1/2 in	1-11-1/2 x 1/2-14	1-5/8
5000-16-12	1 in	3/4 in	1-11-1/2 x 3/4-14	1-5/8
5000-16-16	1 in	1 in	1-11-1/2	1-5/8
5000-20-16	1-1/4 in	1 in	1-1/4-11-1/2 x 1-11-1/2	2 in
5000-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2	2 in
5000-32-32	2 in	2 in	2-11-1/2	2-7/8 in

Product Questions & Answers (1)

Question by: Merle E on Oct 15, 2025, 1:31 PM

Got a 1-1/2 inch NPTF line that needs a straight union connection, this gonna handle 2,000 PSI on a continuous basis or is that more of a peak rating?

Answer by: Customer Support on Oct 16, 2025, 9:21 PM

2,000 PSI is the maximum dynamic pressure rating, so that's what it's rated to handle under working conditions, not just a momentary spike figure. For a 1-1/2-11-1/2 NPTF setup needing a straight through connection, this fits that application directly. Both ends are female NPTF threads at that same size, conforming to SAE J476, so you're getting a standardized, pressure-rated union in one compact piece.
