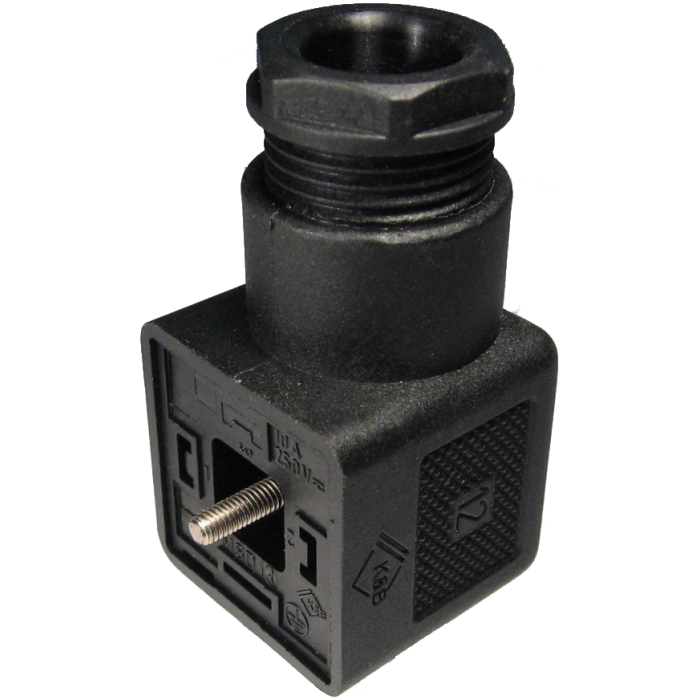

5000 Series DIN 43650 / ISO 4400 Solenoid Connector, Strain Relief Style, Black, 0.236 to 0.315 Inch Cable Diameter

Ask A Question

Description & Features

The Canfield 5000 Series DIN 43650 / ISO 4400 Solenoid Connector in black, strain relief style, is designed to handle cable diameters ranging from 0.236 to 0.315 inches. The connector features a nitrile seal material, ensuring durability and reliability in demanding environments, with an impressive temperature range from -13deg;F to 194deg;F for nitrile gaskets and -40deg;F to 257deg;F for silicone gaskets.

Supplier Part Number: A51001090000

MPN: 5100-10900

Rated with a maximum current of 10 amps and a maximum voltage of 300 VDC / 250 VAC at 50/60 Hz, it meets the highest industry standards. The connector offers an environmental rating of Nema Type 4 and IP65, making it both dust tight and water-resistant.

Its cable outlet can be rotated in 90deg; increments, providing flexibility during installation. Pre-wired options and connectors with indicator lights are available for enhanced functionality. The black variant is suitable for a wide range of industrial applications, from manufacturing to automation systems.

Positive and negative polarity markings (1 = Positive, 2 = Negative) ensure correct wiring.

Specifications

Color
Black
Connection Type
PG11
Ground
Down
grp Environmental Rating
Nema Type 4 and IP65 Dust Tight and Water-Resistant
grp Maximum Cable Diameter
0.41 in
grp Normal Polarity
1 = Positive, 2 = Negative
Material
Nitrile
Power Supply
300 VDC, 250 VAC
Product Type
Solenoid Valve Connector
Seal Material
Nitrile
Series
5000 ISO Series
Specifications
DIN Style A EN175301-803, 10 A Current Rating, 14 AWG Conductor Size
Suitable For Use With
Pressure Switches and Solenoid Valves
Wiring
2+Ground

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Brent K on Jun 18, 2025, 8:08 PM
What size cord will this connector work with?
Answer by: Customer Support on Jun 20, 2025, 8:44 AM
It's designed for cable with a diameter between 0.236 and 0.315 inches.
Question by: Merle A on Jan 2, 2026, 2:06 PM
Got some cables measuring right around a quarter inch, will this black strain relief connector clamp down properly on em without slippin?
Answer by: Customer Support on Jan 3, 2026, 9:50 PM
The connector's built for cables between 0.236 and 0.315 inches in diameter, so yeah, a quarter-inch one falls smack in that range and ought to hold secure.
Question by: Cindy W on Dec 19, 2025, 8:20 AM
Could y'all tell me if this connector is suitable for a cable that's about a quarter-inch thick?
Answer by: Customer Support on Dec 20, 2025, 10:00 AM
Absolutely, this 5000 Series DIN 43650 / ISO 4400 Solenoid Connector is designed to accommodate cables with a diameter ranging from 0.236 to 0.315 inches, so it should fit your quarter-inch cable just fine.
