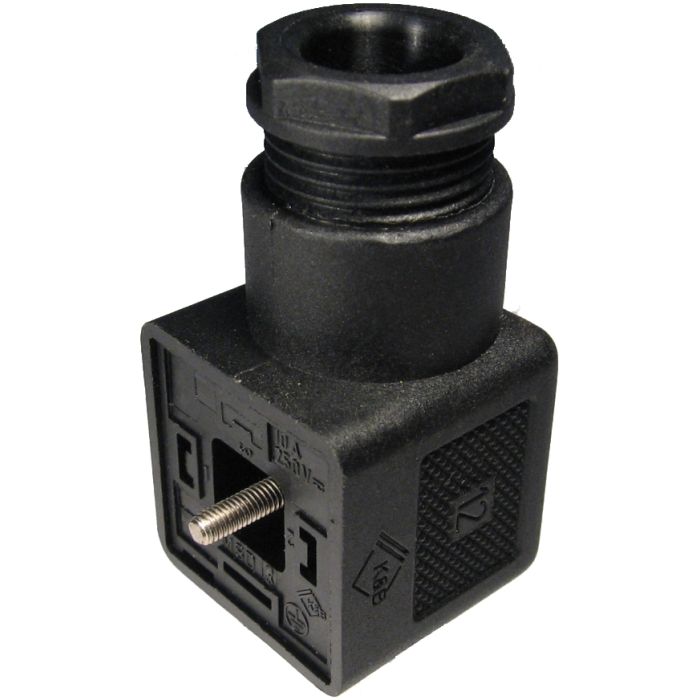

5000 Series DIN 43650 / ISO 4400 Solenoid Connectors, Strain Relief Style

Description & Features

Environmental Rating	Nema Type 4 and IP65 dust tight and water resistant.
Features	Cable outlet can be assembled in 90° increments. Indicator lights and pre-wired options are available. Available in Black, Gray or Translucent (for models with lights).
Maximum Cable Diameter	0.41 inches (See table for cable diameter range).
Maximum Current Rating	10 amps.
Maximum Rated Voltage	300 VDC / 250 VAC @ 50/60 Hz.
Normal Polarity	1 = Positive. 2 = Negative.
Temperature Range	Nitrile gasket -13°F to 194°F. Silicone gasket -40°F to 257°F.

Model Number	Ground	Lights	Seal Material	Wiring	Color	Diameter (in)	Price	Action
5100-10900 5000 Series DIN 43650 Connector	Down	--	Nitrile	2+Ground	Black	0.236 to 0.315
5103-1090000 5000 Series DIN 43650 Connector	Down	6-48 VAC/VDC 50/60 Hz	Nitrile	2+Ground	Translucent	0.315 to 0.394

Question by: Dwight B on Mar 3, 2026, 10:26 AM

Hey, will these connectors hold up if they get splashed with water and dust?

Answer by: Customer Support on Mar 4, 2026, 3:26 PM

They should. These 5000 Series connectors are rated NEMA Type 4 and IP65, so they're designed to be dust-tight and resist water.
