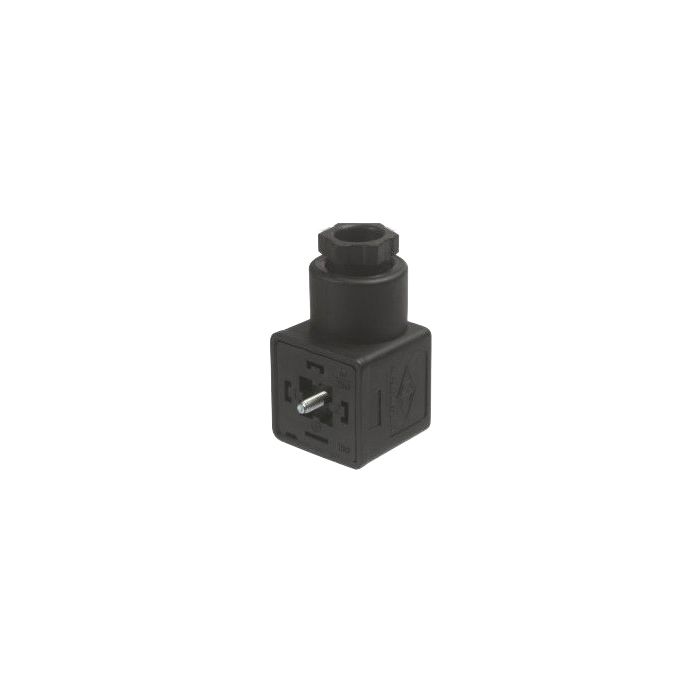

main product photo

Series 5000 MINI Solenoid Connector, Black, 1/2 NPT Connector

Ask A Question

Description & Features

The Series 5000 Mini Solenoid Connector in black is manufactured by Canfield Industries Inc. Designed for optimal performance this connector is rated at a maximum current of 10 amps and a maximum rated voltage of 300 VDC or 250 VAC at 50/60 Hz. It features a 1/2 NPT connector type ensuring a secure and reliable connection.

This solenoid connector is crafted with a nitrile seal material and is environmentally rated Nema Type 4 and IP65 for dust tight and water-resistant protection. Its temperature range varies from -13deg;F to 194deg;F with a nitrile gasket and from -40deg;F to 257deg;F with a silicone gasket.

Notable features include the capability for the cable outlet to be assembled in 180deg; increments. Additionally the connector's strain relief can accommodate a maximum cable diameter of 0.240 to 0.310 inches while the conduit can manage up to 0.410 inches.

Indicator lights and pre-wired options are available to suit various application needs. Available in color variations of black gray or translucent for models with lights this solenoid connector supports normal polarity with 1 positive high and 2 negative neutral.

MPN: 5100-1030000

Supplier Part Number: 5100-1030000

Specifications

Brand
Canfield Connector
Color
Black
Connection Type
NPT
Ground
Down
grp Environmental Rating
Nema Type 4 and IP65 Dust Tight and Water-Resistant
grp Maximum Cable Diameter
Strain Relief - 0.24 to 0.31 in Max, Conduit - 0.41 in Max, 14 AWG Maximum Conductor Wire
grp Normal Polarity
1 = Positive, High, 2 = Negative, Neutral
Material
Nitrile
Power Supply
300 VDC, 250 VAC
Seal Material
Nitrile
Series
5000 MINI Series
Specifications
DIN Style A EN175301-803, 10 A Current Rating, 14 AWG Conductor Size
Suitable For Use With
Pressure Switches and Solenoid Valves

Product Questions & Answers (2)

Question by: Gary C on Aug 25, 2025, 1:17 PM
Is this here connector watertight? I need it for somethin' that's gonna be outside.
Answer by: Customer Support on Aug 27, 2025, 6:04 AM
It's rated NEMA Type 4 and IP65, so it's dust-tight and water-resistant. Should hold up just fine outdoors.
Question by: Hubert M on Oct 10, 2025, 7:59 AM
what's the biggest wire i can run through the strain relief on this connector?
Answer by: Customer Support on Oct 12, 2025, 6:48 AM
Strain relief on this unit handles cable diameters from 0.240 to 0.310 inches at the max, and conductor wire tops out at 14 AWG. If you're going through conduit instead, that opening accommodates up to 0.410 inches. Worth knowing before you pull your wire.
