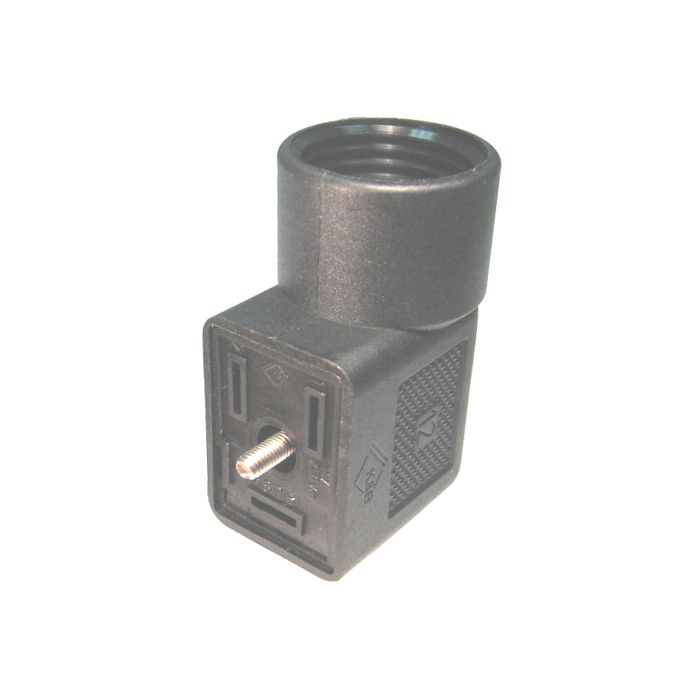

5000 Series MINI Solenoid Connectors

Description & Features

Environmental Rating	Nema Type 4 and IP65 dust tight and water resistant.
Features	Cable outlet can be assembled in 180° increments. Indicator lights and pre-wired options are available. Available in Black, Gray or Translucent (for models with lights).
Maximum Cable Diameter	Strain Relief - 0.240 to 0.310 inches max. Conduit - 0.410 inches max. 14 AWG max conductor wire.
Maximum Current Rating	10 amps.
Maximum Rated Voltage	300 VDC / 250 VAC @ 50/60 Hz.
Normal Polarity	1 = Positive, High. 2 = Negative, Neutral
Temperature Range	Nitrile gasket -13°F to 194°F. Silicone gasket -40°F to 257°F.

Model Number	Ground	Lights	Seal Material	Connector Type	Color	Diameter (in)	Price	Action
5100-1030000 5000 Series MINI Connector	Down	--	Nitrile	1/2 NPT	Black
