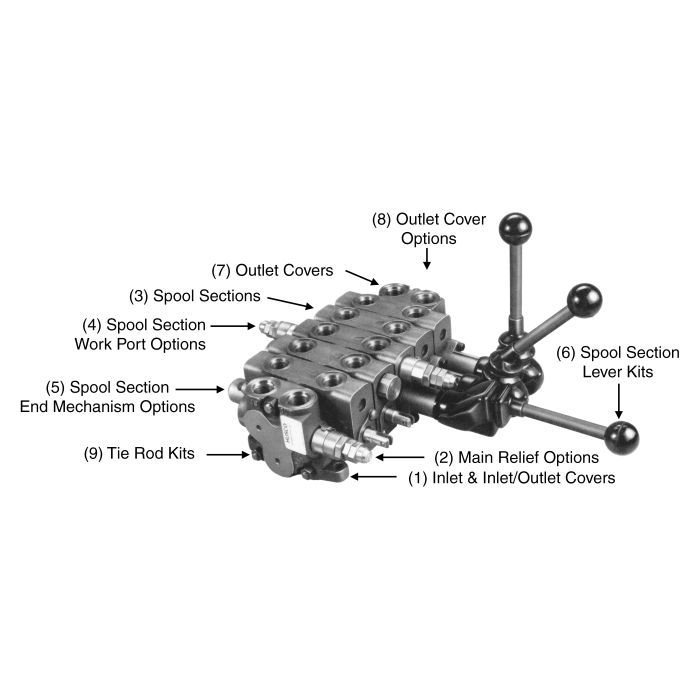

5000 Series HUSCO SPOOL SECTION ASSY

Description & Features

Engineered by Husco International the 5000 Series Husco Spool Section Assembly delivers reliable performance in high-pressure hydraulic environments. Featuring a 3000 psi operating pressure rating this sectional component includes hard chrome plated spools for enhanced durability. Each section is equipped with a load check and single “low pressure” O-ring sealing between sections ensures effective leak prevention. The assembly supports both open-center and closed-center system designs.

The precision spool with metering notches offers accurate control making it ideal for various applications. In a parallel circuit valve assembly multiple spools can be actuated concurrently and oil will follow the path of least resistance. This allows for efficient operation even under varying loads if the spools are not fully shifted.

The spool section assembly accommodates a maximum outlet port/tank core pressure of 500 psi and comes with standard Buna-N seals with optional Viton® seals available for specialized needs.

This spool section is commonly used in hydraulic systems across mobile machinery and equipment, and agriculture, construction applications. For a full overview of supported industries, visit our Industries page

MPN: C1JP46

Supplier Part Number: N5002-A1

Specifications

Key 3	Sg Available Options Valve Assemblies Can be Made Power Beyond or Closed Center by Selecting and Configuring the Appropriate Outlet Cover	Sg How It Works In A Parallel Circuit Valve Assembly, Two or More Spools May be Actuated at the Same Time and the Oil will Follow the Path of Least Resistance, if the Loads are Different and the Spools are Fully Shifted, the Lightest Load will Operate First, if the Spool	Sg Seals Buna-N Standard, FKM Optional	Suitable For Use With 5000 Series Hydraulic Gear Pumps

Product Questions & Answers (2)

Question by: Chephren C on Feb 19, 2026, 1:02 PM

Is this part the same as 5005-v

Question by: Stan W on Jun 16, 2025, 3:17 PM

How does the 5000 Series HUSCO SPOOL SECTION ASSY perform in heavy-duty applications?

Answer by: Customer Support on Jun 18, 2025, 8:30 AM

This spool section assembly is crafted to handle demanding tasks reliably. With its robust design, it's suitable for a wide range of heavy-duty hydraulic applications, ensuring consistent and efficient performance.
