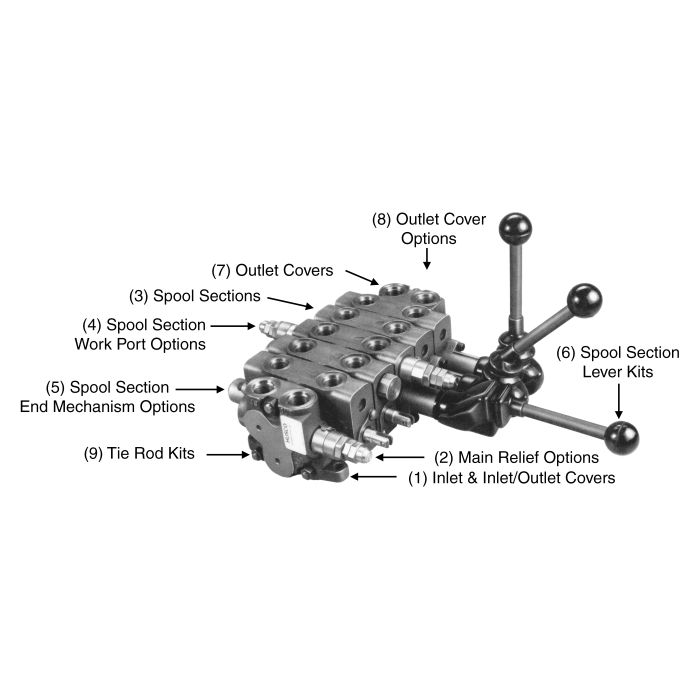

5000 Series HUSCO HANDLE ASSY

Description & Features

The Husco Model 5000 Series Handle Assembly is a versatile component designed for industrial hydraulic systems. With a robust operating pressure rating of 3000 PSI, this handle assembly ensures reliable performance even under demanding conditions. It features hard chrome plated spools, providing enhanced durability and resistance to wear. The assembly supports both open-center and closed-center operation, offering flexibility for various applications. Load checks in each section ensure efficient flow control, while single “low pressure” O-ring sealing between sections minimizes leakage.

Ideal for parallel circuit valve assemblies, this component allows simultaneous actuation of multiple spools, directing oil flow to the path of least resistance. This makes it suitable for systems where loads vary significantly. The assembly includes standard Buna-N seals, with optional Viton® seals available for enhanced chemical resistance.

SKU: N52250-1

Supplier Part Number (MPN): N52250-1

Alternate Part Numbers: 52250-1, C1JP56

Specifications

Brand Husco	Key (6)	Sg Available Options Valve Assemblies Can be Made Power Beyond or Closed Center by Selecting and Configuring the Appropriate Outlet Cover	Sg How It Works In A Parallel Circuit Valve Assembly, Two or More Spools May be Actuated at the Same Time and the Oil will Follow the Path of Least Resistance, if the Loads are Different and the Spools are Fully Shifted, the Lightest Load will Operate First, if the Spool	Sg Seals Buna-N Standard, FKM Optional	Suitable For Use With 5000 Series Hydraulic Gear Pumps

Similar Products

Model Number	Product Description	Price	Action
N5002-A1 5000 Series Sectional Component	HUSCO SPOOL SECTION ASSY

Product Questions & Answers (2)

Question by: Hugh M on Apr 24, 2025, 8:49 AM

What pressure can this handle assembly handle?

Answer by: Customer Support on Apr 25, 2025, 11:31 AM

It's rated for operating pressures up to 3000 PSI.

Question by: Harvey W on Jun 26, 2025, 12:43 PM

got a 5000 series valve stack, is this the handle assembly meant for it or is it some generic lever deal

Answer by: Customer Support on Jun 28, 2025, 6:32 AM

For Husco Model 5000 sectional components, this handle assembly (N52250-1, also listed as 52250-1 and C1JP56) is the matching handle assy called out for that series.
