DANFOSS / EATON ADP SWEEP 45 SPL FLG

Description & Features

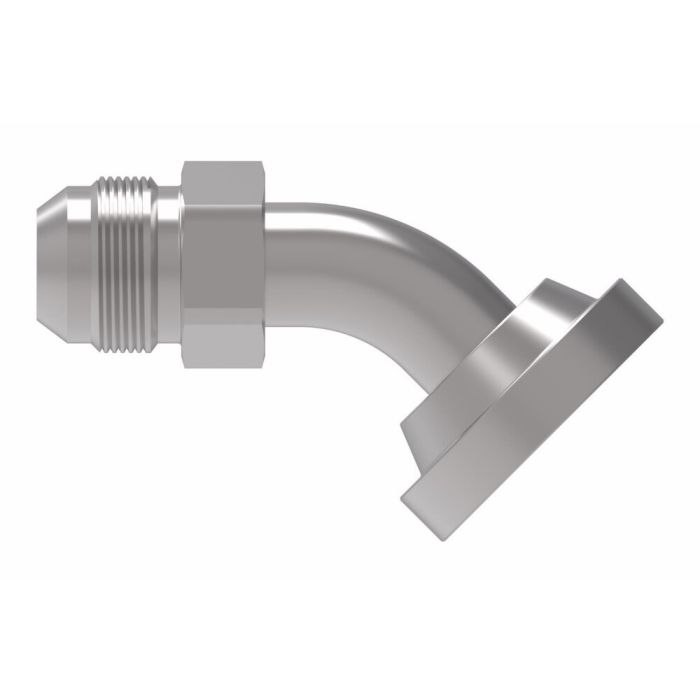

Designed for demanding hydraulic installations, the Danfoss / Eaton Adp Sweep 45 Spl Flg is a carbon steel elbow adapter connecting a 3/4 in. SAE split flange (Code 61) end to a 3/4 in. SAE 37-degree male flare end at a 45-degree sweep angle. The flanged-to-flare configuration supports flexible routing in space-constrained assemblies without sacrificing connection integrity.

Dura-Kote plating provides strong corrosion resistance, making this adapter well suited for marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper environments. It is rated to perform at temperatures as low as -65°F and is built to exceed SAE standards for working pressure. Conforming to SAE J514, it integrates reliably with standard hydraulic circuit components. The adapter weighs 0.25 lb and has a product width of 0.94 in., with a drop dimension of 1.00 in.

SKU: 500023-12-8S

Supplier Part Number (MPN): 500023-12-8S

Specifications

Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Certifications SAE J514	Drop Dimension 1.00	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 2 13556	End Size 1 0.75	End Size 2 0.75	End Type 1 Flanged	End Type 2 SAE 37	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Flanged !/SAE 37 Male Elbow Adapter	Language English	Minimum Working Temperature -65	Product Material Carbon Steel	Product Width 0.94	Sub Brand None	Supplier Part Number 500023-12-8S	Product Weight 0.25 lbs

Product Questions & Answers (1)

Question by: Hugh F on Sep 19, 2025, 5:24 PM

Wondering if this adapter would hold up okay in a saltwater environment on my boat?

Answer by: Customer Support on Sep 21, 2025, 6:27 AM

Dura-Kote plating gives this adapter good corrosion resistance, so it should be suitable for marine applications.
