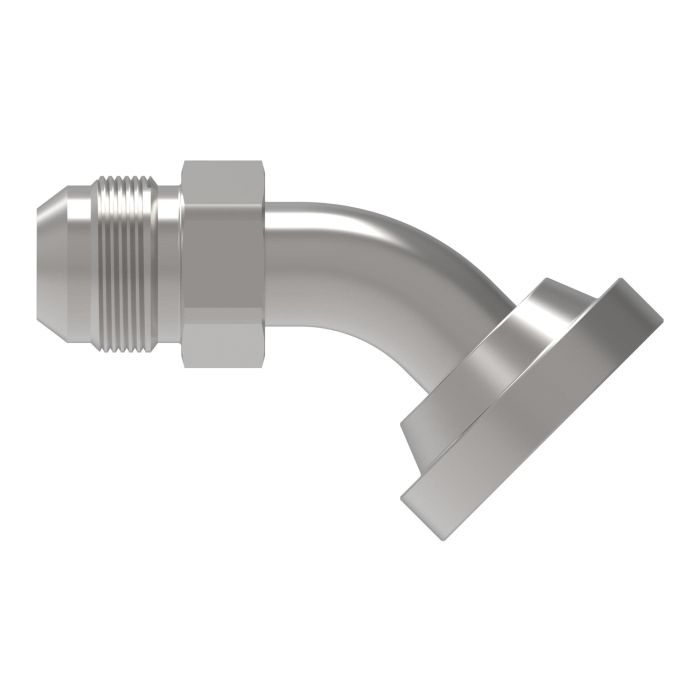

DANFOSS / EATON ADPT SWEEP 45 SPL FLG

Ask A Question

Description & Features

This Eaton Aeroquip carbon steel adapter features a 45-degree sweep elbow configuration, designed for demanding hydraulic applications. The flanged end provides a secure, leak-resistant connection. This adapter conforms to SAE J514 standards and is suitable for use in marine/military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling environments.

The DANFOSS / EATON ADPT SWEEP 45 SPL FLG features Dura-Kote plating, which provides enhanced corrosion resistance. Design flexibility is assured with a wide variety of styles available. This adapter offers higher operating pressures than standard SAE requirements. It has a minimum working temperature of -65 degrees Fahrenheit. End 1 is flanged; End 2 is SAE 37 degree male.

SKU: 500023-20-16S

Supplier Part Number (MPN): 500023-20-16S

Alternate Part Numbers: C1FD35

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Flanged, Male JIC
Connection Type 1
SAE Code 61 Flange
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514/J518
Drop Dimensions
1.13 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-65
Series
500023 Series
Thread Size
1-5/16-12

Product Questions & Answers (1)

Question by: Jimmy S on Jul 6, 2025, 10:44 AM
Will this fitting hold up in a marine environment, say on a fishing boat?
Answer by: Customer Support on Jul 7, 2025, 10:56 AM
Dura-Kote plating gives this fitting superior corrosion resistance, so it's well-suited for marine applications, including fishing boats.
