DANFOSS / EATON ADPT SWEEP 45 SPL FLG

Description & Features

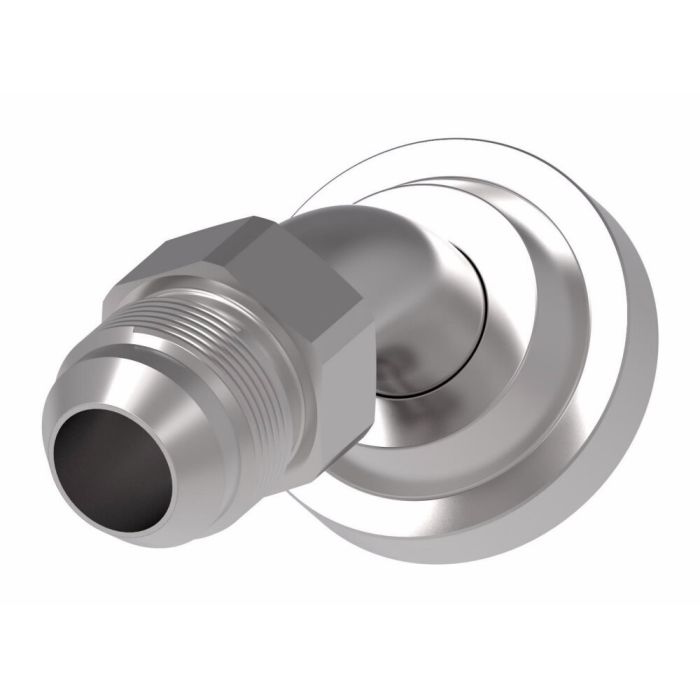

This Eaton Aeroquip 45° elbow adapter offers design flexibility with a wide range of styles to choose from. Featuring Dura-Kote plating, this carbon steel adapter offers superior corrosion resistance in demanding applications. It is ideal for use in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications.

This flanged adapter conforms to SAE J514 standards and has a minimum working temperature of -65°F. It connects via a flanged end to a SAE 37° male end.

SKU: 500023-24-20S

Supplier Part Number (MPN): 500023-24-20S

Alternate Part Numbers: C1GG62

Specifications

Connection Size 1 1-1/2 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Male JIC	Connection Type 1 SAE Code 61 Flange	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514/J518	Drop Dimensions 1.12 in	Finish Dura-Kote™	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 500023 Series	Thread Size 1-5/8-12

Product Questions & Answers (1)

Question by: Rod S on Nov 6, 2025, 10:24 AM

What kind of stuff is this fitting good for? Like, what industries use it?

Answer by: Customer Support on Nov 8, 2025, 6:29 AM

Eaton designed this elbow adapter for flexibility across several demanding applications, including marine, military, chemical processing, food and beverage, pulp and paper, and even offshore drilling environments.
