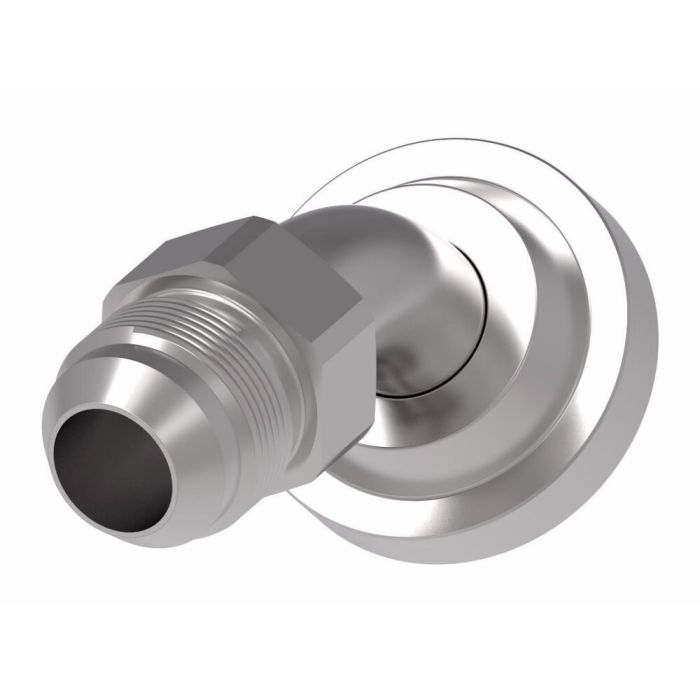

Designed for demanding hydraulic circuit routing, this carbon steel sweep elbow adapter connects an SAE split flange (Code 61) end to an SAE 37-degree flare male end at a 45-degree angle. The flanged-to-flare configuration supports clean directional changes in high-pressure hydraulic lines without requiring additional fittings.
The Danfoss / Eaton Adpt Sweep 45 Spl Flg carries Dura-Kote plating for strong corrosion resistance, and is rated for working temperatures down to -65°F. Certified to SAE J514, it is built to perform above standard SAE pressure thresholds. Suited for marine and military environments, chemical processing, offshore drilling, pulp and paper, and food and beverage processing applications, this adapter is part of the Aeroquip product family, which offers broad style and configuration options to accommodate complex hydraulic system layouts.
SKU: 500023-24-32S
Supplier Part Number (MPN): 500023-24-32S
|
Alternate Part Numbers
MINO-00925X04290
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE J514
|
Drop Dimension
1.12
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 2
13556
|
End Type 1
Flanged
|
End Type 2
SAE 37
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
Flanged /SAE 37 Male Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Product Material
Carbon Steel
|
Product Width
2.62
|
Sub Brand
None
|
Supplier Part Number
500023-24-32S
|
Product Weight
2.27 lbs
|
