Split Flange Code 61

Ask A Question

Description & Features

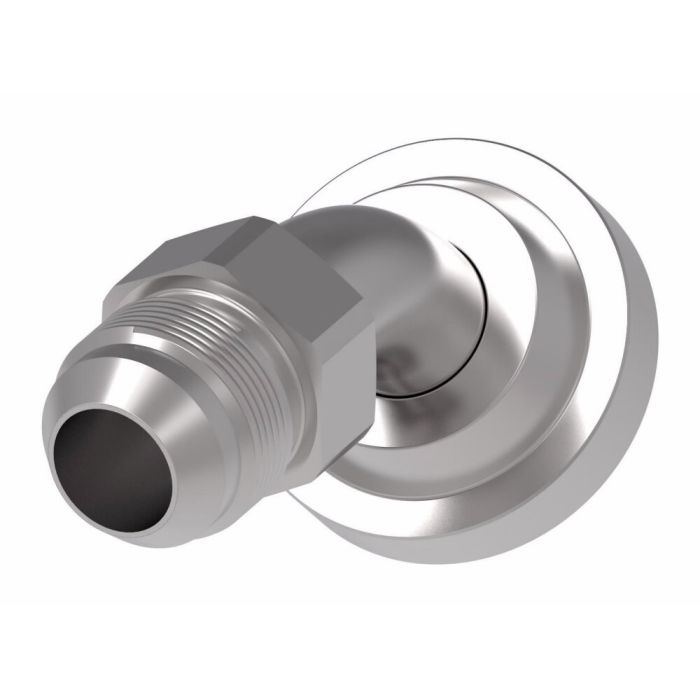

Designed for demanding industrial environments, this carbon steel elbow adapter connects a Code 61 split flange end to an SAE 37° male flare in a 45° elbow configuration. The Split Flange Code 61 is built to Eaton Aeroquip's Dura-Kote plating standard, which provides measurable corrosion resistance in harsh or chemically aggressive service conditions. Operating pressure capability exceeds standard SAE thresholds, making it a practical choice where higher system pressures are a factor.

Certified to SAE J514, this adapter is suited for a wide range of heavy-duty applications including off-shore drilling, marine and military use, chemical processing, and food and beverage or pulp and paper facilities. A minimum working temperature of -65°F extends its usability into cold-climate and refrigerated environments. Available across hundreds of styles and configurations, the Aeroquip 500023 series offers meaningful design flexibility for varied connection requirements.

SKU: 500023-24S

Supplier Part Number (MPN): 500023-24S

Alternate Part Numbers: C1GH55

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
SAE Code 61 Flange
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514/J518
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
500023 Series
Thread Size
1-7/8-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rick B on Aug 30, 2025, 7:18 PM
Will this fitting hold up okay in a marine environment? Salt water can be brutal on some metals.
Answer by: Customer Support on Sep 1, 2025, 8:55 AM
Dura-Kote plating gives this fitting superior corrosion resistance, so it's well-suited for marine applications.
Question by: Marvin H on Dec 11, 2025, 8:34 AM
does the Dura-Kote plating on this hold up in saltwater or marine environments? asking because we run equipment offshore and corrosion is always a fight
Answer by: Customer Support on Dec 12, 2025, 7:09 PM
Carbon steel fittings typically take a beating in saltwater, but the Dura-Kote plating on this adapter is specifically there to give it superior corrosion resistance. It's listed for marine and offshore drilling applications, so it's built with those conditions in mind. That plating is doing real work, not just cosmetic.
