Split Flange Code 61

Description & Features

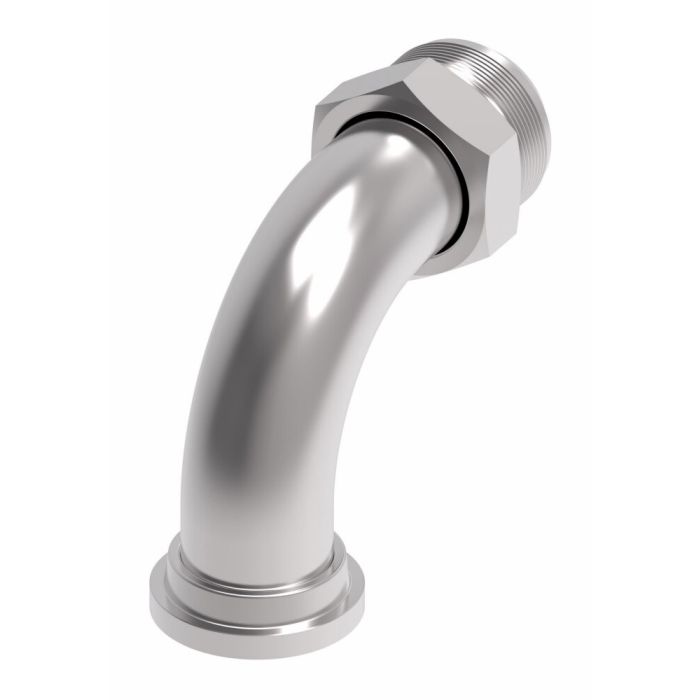

This Eaton Aeroquip Split Flange Code 61 adapter features a 90-degree elbow configuration, combining a flanged end with an SAE 37° male end. Constructed from carbon steel with Dura-Kote plating, it offers superior corrosion resistance and design flexibility. This adapter is certified to SAE J514 standards.

Applications include marine, military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling. It is designed for high operating pressures and performs in minimum working temperatures as low as -65 degrees Fahrenheit.

SKU: 500024-32-20S

Supplier Part Number (MPN): 500024-32-20S

Specifications

Connection Size 1 2 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Male JIC	Connection Type 1 SAE Code 61 Flange	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514/J518	Dimensions 4.39 in L	Drop Dimensions 2.56 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With Model 449-74446 Flanges	Hex Size 2-1/2 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 500024 Series	Thread Size 1-5/8-12

Product Questions & Answers (1)

Question by: Rusty P on Mar 13, 2026, 6:39 PM

Reckon this elbow adapter'll hold up in a chemical plant environment?

Answer by: Customer Support on Mar 15, 2026, 12:38 PM

Dura-Kote plating gives this adapter superior corrosion resistance, so it should be suitable for chemical processing applications.
