Aeroquip SPLIT FLNG/37 Deg

Description & Features

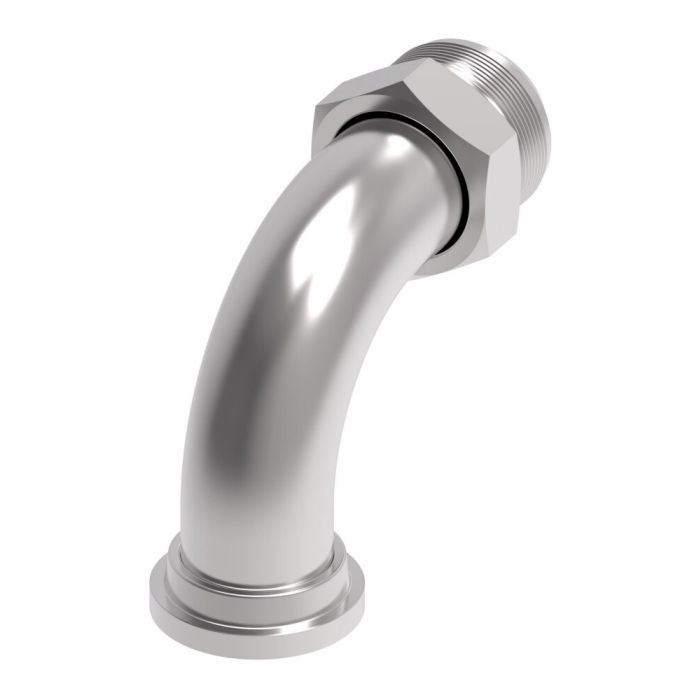

This Aeroquip SPLIT FLNG/37 Deg is a flanged elbow adapter featuring a SAE 37-degree male end. Constructed of carbon steel, it offers Dura-Kote plating for enhanced corrosion resistance and design flexibility.

The adapter is suitable for applications in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling industries. It meets SAE J514 standards and is designed for higher operating pressures above SAE standards. It has a minimum working temperature of -65 degrees.

SKU: 500024-40-40S

Supplier Part Number (MPN): 500024-40-40S

Specifications

Connection Size 1 2-1/2 in	Connection Size 2 2-1/2 in	Connection Type Flanged, Male JIC	Connection Type 1 SAE Code 61 Flange	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514/J518	Dimensions 3 in W	Drop Dimensions 5.19 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With Model 449-74446 Flanges	Material Steel	Material Construction Carbon Steel	Operating Temperature -65	Series 500024 Series	Thread Size 3-12

Product Questions & Answers (1)

Question by: Terry W on Apr 5, 2026, 10:04 AM

What kind of operating temperatures can this handle?

Answer by: Customer Support on Apr 7, 2026, 6:42 AM

This fitting is rated down to a minimum working temperature of -65 degrees.
