Danfoss / Eaton ADPT SPL FLG ST CONN

Description & Features

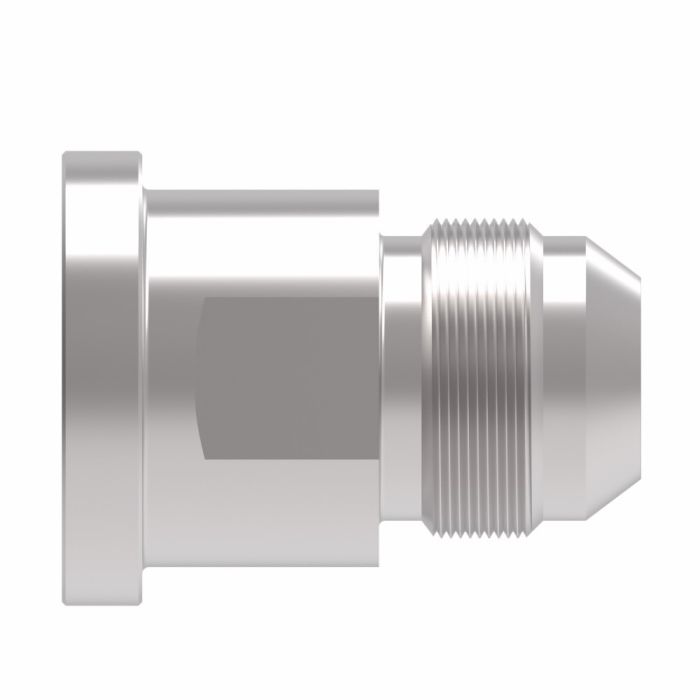

Designed for demanding industrial environments, this carbon steel straight adapter connects a Code 61 split flange end to an SAE 37° male flare, with both ends sized at 0.875 inches. The Danfoss / Eaton ADPT SPL FLG ST CONN is built to exceed standard SAE operating pressure thresholds, making it suitable for high-pressure hydraulic circuits in marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper applications.

Finished with Dura-Kote plating, the adapter provides strong resistance to corrosion in harsh or moisture-prone environments. Certified to SAE J514, it meets recognized industry standards for hydraulic fittings. The adapter is part of the Aeroquip product line and is available in a wide range of configurations to support varied system design requirements. Rated for use down to -40° minimum working temperature, it performs reliably across a broad range of operating conditions.

SKU: 500025-16-10S

Supplier Part Number (MPN): 500025-16-10S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1 in	Connection Size 2 5/8 in	Connection Type Flanged, Male JIC	Connection Type 1 SAE Code 61 Flange	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514/J518	Dimensions 1.86 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 500025 Series	Thread Size 7/8-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
500025-16S Steel Code 61 To Male JIC Adapter	1 in	1 in	1-5/16-12
500025-20-16S Steel Code 61 To Male JIC Adapter	1-1/4 in	1 in	1-5/16-12
500025-20S Steel Code 61 To Male JIC Adapter	1-1/4 in	1-1/4 in	1-5/8-12
500025-12S Steel Code 61 To Male JIC Adapter	3/4 in	3/4 in	1-1/16-12
500025-24-20S Steel Code 61 To Male JIC Adapter	1-1/2 in	1-1/4 in	1-5/8-12
500025-16-12S Steel Code 61 To Male JIC Adapter	1 in	3/4 in	1-1/16-12
500025-8S Steel Code 61 To Male JIC Adapter	1/2 in	1/2 in	3/4-16
500025-12-8S	3/4 in	1/2 in	3/4-16
500025-24-16S	1-1/2 in	1 in	1-5/16-12
500025-24S	1-1/2 in	1-1/2 in	1-7/8-12
500025-32-16S	2 in	1 in	1-5/16-12
500025-32-20S	2 in	1-1/4 in	1-5/8-12
500025-32-24S	2 in	1-1/2 in	1-7/8-12
500025-32S	2 in	2 in	2-1/2-12
