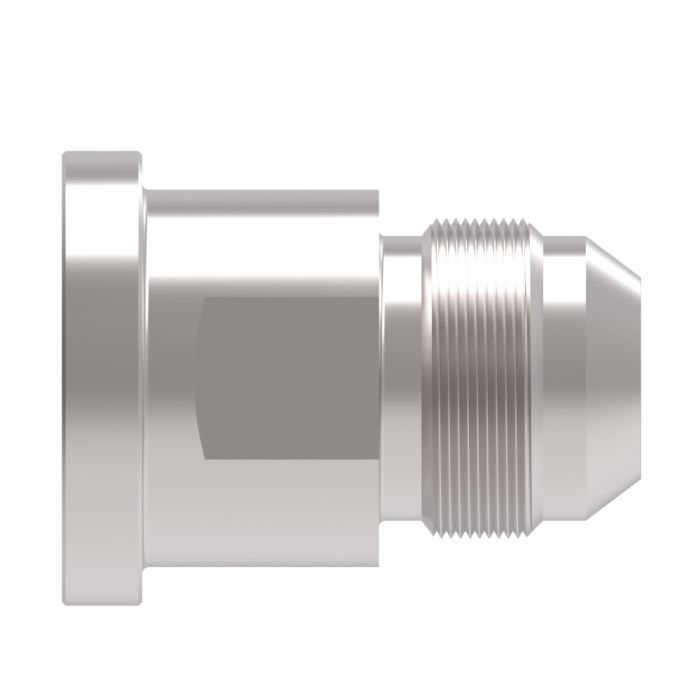

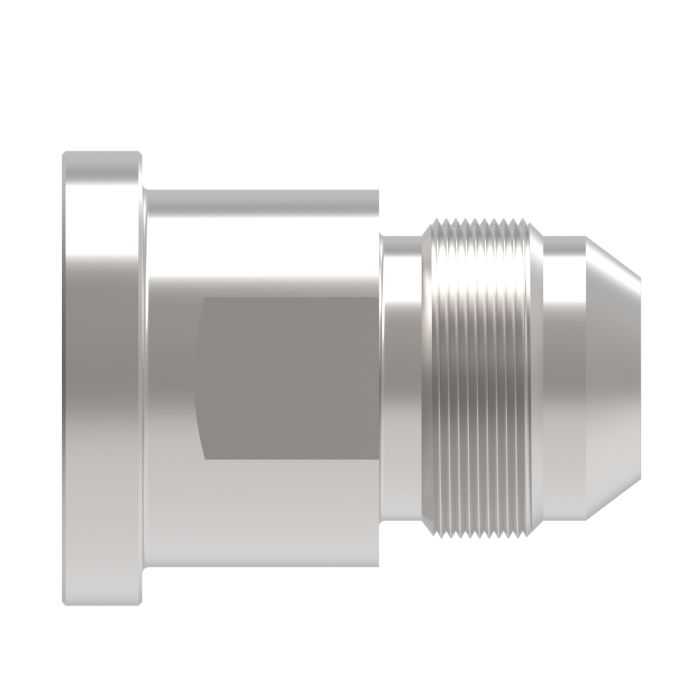

Danfoss / Eaton SPLIT FLNG/37 Deg Flare W

Ask A Question

Description & Features

Designed for demanding industrial and hydraulic applications, this carbon steel straight adapter combines an SAE split flange (Code 61) end with an SAE 37° male flare connection. The Danfoss / Eaton SPLIT FLNG/37 Deg Flare W is built to perform above standard SAE pressure thresholds and carries SAE J514 certification, making it suitable for high-pressure hydraulic systems across marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling environments.

Manufactured by Eaton Aeroquip, the adapter features Dura-Kote plating that provides strong corrosion resistance suited to harsh or moisture-exposed service conditions. With a minimum working temperature rated to -40°, it maintains reliability across wide temperature ranges. The flanged-to-37° male straight configuration offers a clean, leak-resistant connection with the design flexibility expected from the Aeroquip product line.

SKU: 500025-32-24S

Supplier Part Number (MPN): 500025-32-24S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
SAE Code 61 Flange
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514/J518
Dimensions
2.71 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-65
Series
500025 Series
Thread Size
1-7/8-12

Product Questions & Answers (2)

Question by: Dale C on Mar 2, 2026, 10:56 AM
does this adapter work in saltwater or corrosive environments, or is that gonna be a problem long term?
Answer by: Customer Support on Mar 4, 2026, 6:36 AM
Carbon steel with Dura-Kote plating is what you're getting here, and that coating is specifically built for superior corrosion resistance. Marine and offshore drilling are listed applications for this part, so exposure to harsh or corrosive environments is something it was built to handle.
Question by: Patty H on Apr 22, 2025, 9:17 AM
Will this work for a marine application?
Answer by: Customer Support on Apr 24, 2025, 6:15 AM
Yes, this adapter is applicable for marine/military uses. It also suits chemical processing, pulp and paper, food and beverage processing, and off-shore drilling.
