Din Union Complete

Description & Features

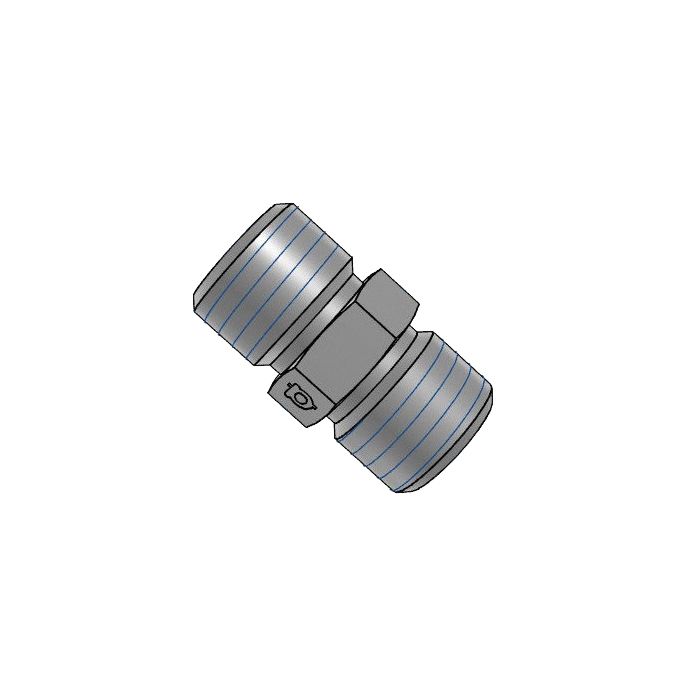

The Din Union Complete by Adaptall America is designed for industrial applications requiring precise robust connections. Manufactured from steel this straight-shaped connector features M12 x 1.5 Din Tube connections on both ends each with a male gender and L06 size for seamless compatibility.

With dimensions including a CH width of 12mm an L1 length of 24mm and an L2 length of 10mm this component ensures a secure and reliable fit. The unit does not encompass adjustable ends check valves or color coding making it suitable for integrated systems where these features are not needed.

Adaptall Americas dedication to quality and precision is evident in this components robust construction fundamental for maintaining the integrity and performance of complex setups.

Supplier Part Number: 5000L-06C

Specifications

CH Width 12mm	L1 Length 24mm	L2 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-06C	Product Weight 0.08 lbs

Product Questions & Answers (1)

Question by: Randy P on Aug 2, 2025, 4:54 PM

Will this work on standard hydraulic lines, or is it just for DIN stuff?

Answer by: Customer Support on Aug 4, 2025, 6:02 AM

This Din Union Complete is made specifically for M12 x 1.5 Din Tube connections on both ends. It won't work with standard hydraulic lines unless they're also using that DIN standard.
