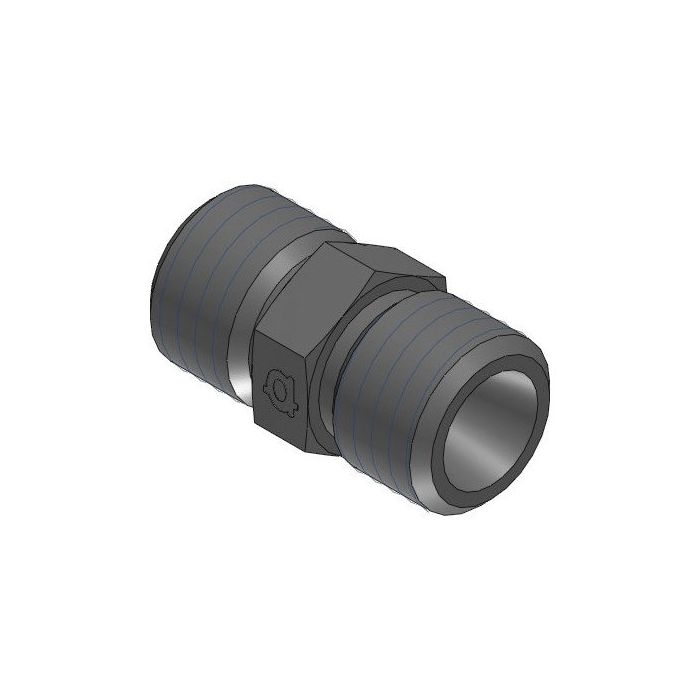

Din Union

Description & Features

Constructed from durable steel, this Din Union is designed for reliable performance in hydraulic applications. Featuring a straight shape, it offers a secure connection with its dual male Din Tube fittings. Side 1 is equipped with an M18 x 1.5 thread size, while Side 2 features an M14 x 1.5 configuration, ensuring compatibility with various systems. The precise dimensions include an Adaptall L1 length of 27mm and an L2 length of 13mm, providing a compact and efficient design.

The Din Union is part of the Adaptall brand, known for its quality and precision in producing hydraulic components. With an Adaptall Ch Width of 19mm, this union is engineered to fit seamlessly into existing setups, offering versatility and ease of installation. Its robust steel construction ensures long-lasting durability, making it an ideal choice for demanding industrial environments.

SKU: 5000L-12-08

Supplier Part Number (MPN): 5000L-12-08

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 8 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 27 mm L	Finish Zinc-Plated	Fitting Type Union	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M18x1.5 x M14x1.5

Product Questions & Answers (1)

Question by: Cody M on Feb 14, 2026, 5:58 PM

Will this union work if I need to connect a M18 x 1.5 thread to a M14 x 1.5 thread?

Answer by: Customer Support on Feb 16, 2026, 7:38 AM

Yes, that's exactly what it's for. This DIN union has an M18 x 1.5 thread on one side and an M14 x 1.5 on the other, so it'll connect those two sizes.
