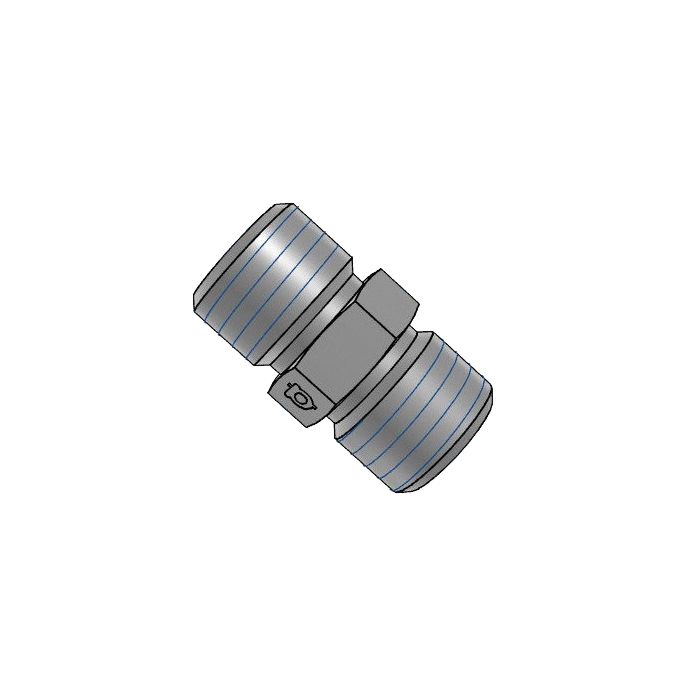

main product photo

Din Union Complete

Ask A Question

Description & Features

The Din Union Complete engineered by Adaptall America is a robust and versatile component designed to meet the needs of metric system applications. Crafted from high-quality steel this straight-shaped union ensures durability and reliable performance in demanding environments.

The Din Union Complete features metric thread sizes of M18 X 1.5 on both sides providing a consistent and secure connection. With measurements of 19mm in width 28mm in length (L1) and 14mm in length (L2) it offers precise and standardized fitting dimensions.

Both connection ends of this union are designed with male gender type and L12 size ensuring seamless integration with other DIN tube components. The absence of adjustable ends and additional features like check valves or thread sealants highlights its straightforward configuration making it a reliable choice for professional installations.

Supplier Part Number: 5000L-12C

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
12 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
28 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5000 Series
Thread Size
M18x1.5

Product Questions & Answers (2)

Question by: Sherry M on Jul 14, 2025, 11:49 AM
Will this work on standard DIN tubing, or is it just for light duty stuff?
Answer by: Customer Support on Jul 16, 2025, 10:49 AM
This Din Union Complete is designed for use with DIN tube connections, ensuring reliable performance in metric system applications.
Question by: Harvey L on Jun 28, 2025, 8:37 AM
both sides on this union are M18 x 1.5 thread, right? just want to make sure before I order a couple
Answer by: Customer Support on Jun 30, 2025, 6:27 AM
Correct on both counts. Each end carries an M18 x 1.5 male thread, and both sides are L12 size DIN tube connections. The threading is identical side to side, so there's no guessing which end goes where during installation.
