Din Union Complete

Description & Features

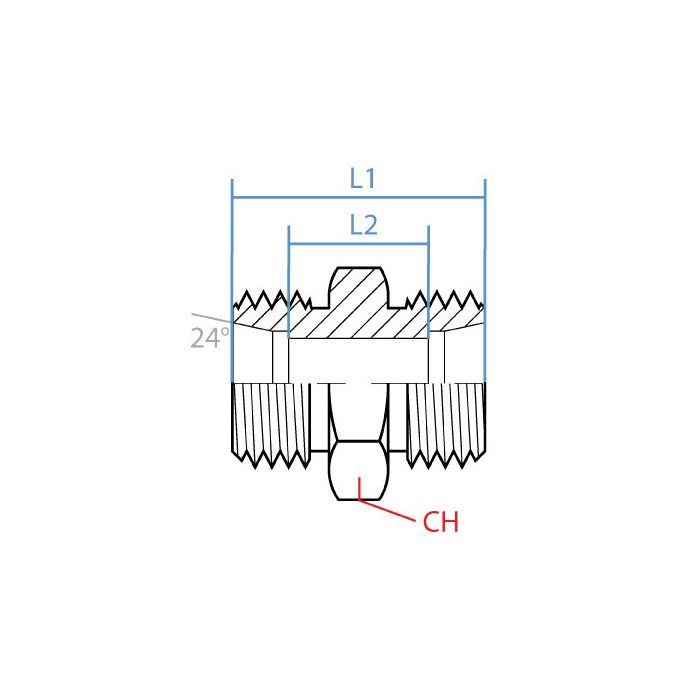

The Din Union Complete offers a reliable and precise connection solution for hydraulic systems, featuring a straight shape and dual M14 x 1.0 Din Tube connections. Constructed with a male gender configuration on both sides, this union ensures a secure fit and compatibility with LL10 size tubing. Its compact design, with a 14mm width and lengths of 23mm and 11mm for L1 and L2 respectively, makes it an optimal choice for space-constrained installations. Manufactured by Adaptall, this union is designed for durability and efficiency in demanding industrial environments.

SKU: 5000LL-10C

Supplier Part Number (MPN): 5000LL-10C

Specifications

Brand adapt-all	Connection Size 1 LL10	Connection Size 2 LL10	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 23 mm L	Finish Zinc-Plated	Fitting Type Union	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M14x1

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000LL-04C	LL04	LL04	M8x1
5000LL-06C	LL06	LL06	M10x1	12 mm
5000LL-08C	LL08	LL08	M12x1	12 mm
5000LL-12C	LL12	LL12	M16x1	17 mm

Product Questions & Answers (2)

Question by: Dean J on Oct 19, 2025, 1:39 PM

So this union's got M14 threads on both ends, right? Just wanna double-check before I order.

Answer by: Customer Support on Oct 20, 2025, 7:17 PM

That's correct. This DIN union complete features dual M14 x 1.0 DIN tube connections, both configured as male.

Question by: Roy R on Jun 14, 2025, 6:14 AM

trying to tie two LL10 DIN tube ends together, is this the right union or am i off a size

Answer by: Customer Support on Jun 15, 2025, 2:35 PM

For joining two DIN tube connections in the same size, this one matches LL10 on both sides and uses M14 x 1.0 male threads on each end. It is a straight union, so it is meant to connect the two ends in-line.
