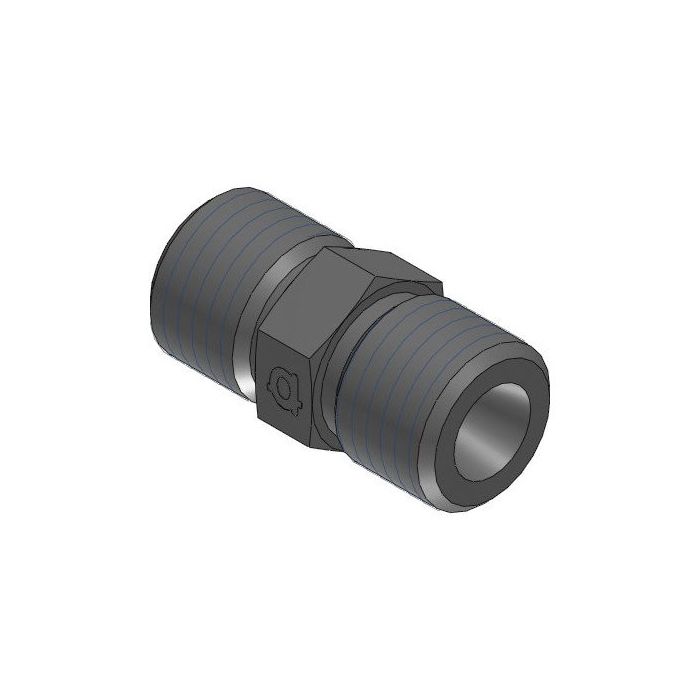

Din Union

Description & Features

Manufactured with precision, the Adaptall Din Union is a robust and reliable component designed for challenging hydraulic applications. Constructed from high-grade steel, this straight union ensures durability and strength, making it ideal for heavy-duty environments. It features a M16 x 1.5 Din Tube connection on both sides, providing seamless integration with compatible systems.

The Din Union's compact dimensions, including a 17mm width and lengths of 32mm and 18mm, ensure it fits efficiently into existing setups without compromising performance. Its male-to-male configuration further enhances its versatility in various industrial settings.

SKU: 5000S-08

Supplier Part Number (MPN): 5000S-08

Specifications

Brand adapt-all	Connection Size 1 8 mm	Connection Size 2 8 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Union	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M16x1.5

Product Questions & Answers (1)

Question by: Clint D on Jan 15, 2026, 7:09 AM

both sides on this fitting are M16 x 1.5 thread, that right? just want to make sure before i order

Answer by: Customer Support on Jan 17, 2026, 6:42 AM

Correct on both counts. Each end carries an M16 x 1.5 male DIN tube thread, so you're working with a matched union that connects two lines of the same spec. The 5000S-08 is a straight configuration, no offset or angle to account for during installation.
