Din Union Complete

Description & Features

This Adaptall Din Union Complete features a straight shape and is constructed of steel for durability. It is designed with M20 X 1.5 side 1 and side 2 callouts.

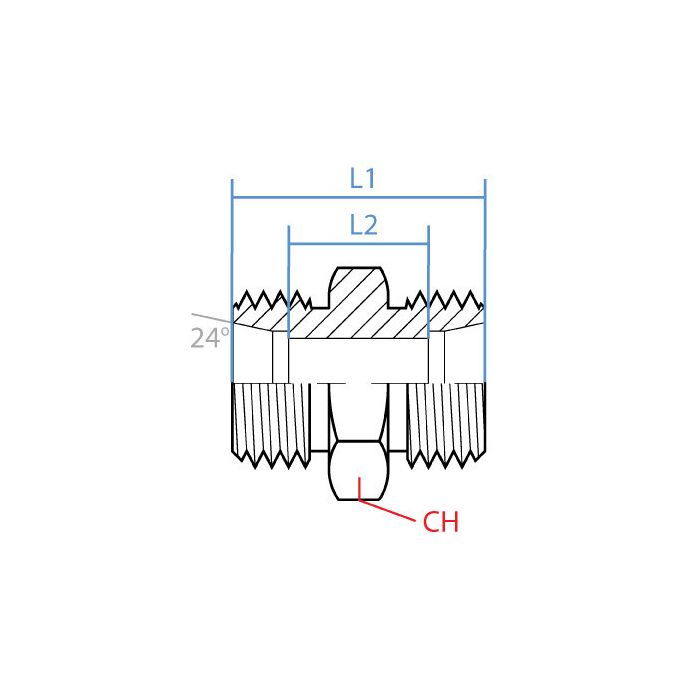

The Adaptall Din Union Complete has an Adaptall Side 1 and Side 2 Size of S12 and a Side 1 and Side 2 Type of Din Tube. Adaptall Ch Width measures 22mm, Adaptall L1 Length is 34mm, and Adaptall L2 Length is 19mm.

SKU: 5000S-12C

Supplier Part Number (MPN): 5000S-12C

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 12 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 34 mm L	Finish Zinc-Plated	Fitting Type Union	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M20x1.5

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000S-06C	6 mm	6 mm	M14x1.5	14 mm
5000S-08C	8 mm	8 mm	M16x1.5	17 mm
5000S-10C		10 mm	M18x1.5	19 mm
5000S-14C	14 mm	14 mm	M22x1.5	24 mm
5000S-16C	S16	S16	M24x1.5	27 mm
5000S-20C	20 mm	20 mm	M30x2	32 mm
5000S-25C	S25	S25	M36x2	41 mm
5000S-30C	30 mm	S30	M42x2
5000S-38C	38S	38S	M52x2	55 mm

Product Questions & Answers (3)

Question by: Roy W on May 21, 2025, 7:09 AM

What’s the width across the flats on this union? I need to get my wrench right.

Answer by: Customer Support on May 22, 2025, 8:00 AM

The wrench flat size (Ch Width) on this DIN union is 22mm.

Question by: Tommy C on Feb 22, 2026, 8:18 AM

got a din tube setup with m20 x 1.5 on both ends. is this union the right match?

Answer by: Customer Support on Feb 23, 2026, 4:33 PM

For a straight DIN tube union with M20 x 1.5 male threads on both sides, this part matches that layout. Both ends are called out as M20 x 1.5, with Side 1 and Side 2 listed as DIN Tube, size S12, gender M.

Question by: Hugh H on Sep 5, 2025, 7:40 AM

part number 5000S-12C, is this the full union assembly or just one side of the fitting?

Answer by: Customer Support on Sep 7, 2025, 6:25 AM

You're getting the complete union assembly with both sides included. Both ends are S12 DIN tube type with M20 x 1.5 threading, so it's ready to connect two lines without needing separate components.
