Din Union

Description & Features

Machined from steel in a straight configuration, this DIN Union provides a same-size, male-to-male tube connection on both ends using M30 x 2.0 thread on each side. Both sides are rated at the S20 DIN tube size, making this a symmetric union suited for joining two DIN tube lines of equal size within a hydraulic circuit.

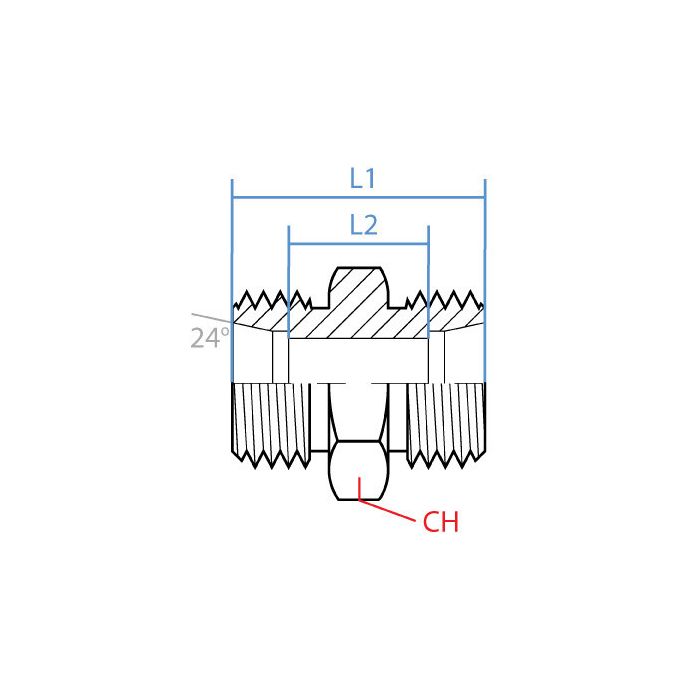

At 44mm in overall length with a 23mm secondary length dimension and a 32mm jaw width, the fitting is compact and well-proportioned for inline installation in tight hydraulic assemblies. The steel construction provides the durability expected in demanding industrial hydraulic environments. Manufactured by Adaptall, this fitting is part of their interchangeable adapter system.

SKU: 5000S-20

Supplier Part Number (MPN): 5000S-20

Specifications

Brand adapt-all	Connection Size 1 20 mm	Connection Size 2 20 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 44 mm L	Finish Zinc-Plated	Fitting Type Union	Hex Size 32 mm	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M30x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000S-06	6 mm	6 mm	M14x1.5	14 mm
5000S-08	8 mm	8 mm	M16x1.5	17 mm
5000S-10		10 mm	M18x1.5	19 mm
5000S-12	L12	12 mm	M20x1.5	22 mm
5000S-14	14 mm	14 mm	M22x1.5	24 mm
5000S-16	S16	S16	M24x1.5	27 mm
5000S-25	S25	S25	M36x2	41 mm
5000S-30	30 mm	S30	M42x2
5000S-38	38S	38S	M52x2	55 mm
