Din Union Complete

Description & Features

Designed for straight-through DIN tube connections, this steel Din Union Complete joins two M42 x 2.0 male DIN tube ends in a single inline fitting. Both sides share the same S30 size and thread specification, making it a symmetrical union suited for connecting matching tube ends within a hydraulic circuit.

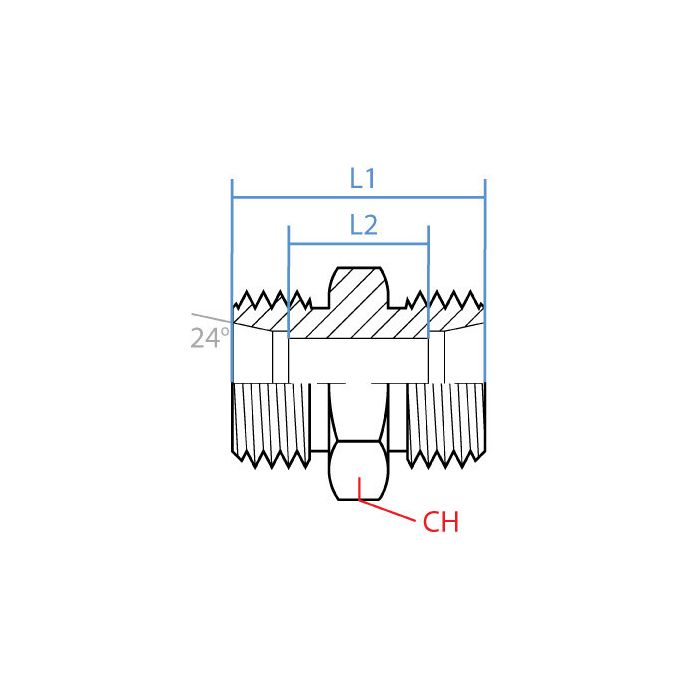

Manufactured by Adaptall, the fitting measures 54mm in overall length with a 27mm L2 dimension and a 46mm ch width across the wrench flats. Steel construction provides the durability expected in demanding hydraulic line assemblies.

SKU: 5000S-30C

Supplier Part Number (MPN): 5000S-30C

Specifications

Brand adapt-all	Connection Size 1 30 mm	Connection Size 2 S30	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 54 mm L	Finish Zinc-Plated	Fitting Type Union	Material Steel	Material Construction Carbon Steel	Series 5000 Series	Thread Size M42x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5000S-06C	6 mm	6 mm	M14x1.5	14 mm
5000S-08C	8 mm	8 mm	M16x1.5	17 mm
5000S-10C		10 mm	M18x1.5	19 mm
5000S-12C	L12	12 mm	M20x1.5	22 mm
5000S-14C	14 mm	14 mm	M22x1.5	24 mm
5000S-16C	S16	S16	M24x1.5	27 mm
5000S-20C	20 mm	20 mm	M30x2	32 mm
5000S-25C	S25	S25	M36x2	41 mm
5000S-38C	38S	38S	M52x2	55 mm

Product Questions & Answers (2)

Question by: Chad B on Aug 20, 2025, 10:00 AM

trying to join two DIN tube ends that are both M42 x 2.0, is this union the right one or am I missing something

Answer by: Customer Support on Aug 22, 2025, 6:08 AM

For a straight-through connection, it matches two male DIN tube ends with the same thread and size on both sides. Both ends are M42 x 2.0, male, DIN tube type, and S30, so it is meant to couple two matching ends inline.

Question by: Lee M on May 2, 2025, 8:19 AM

Both ends on this union are M42 x 2.0 DIN tube, right? Just want to make sure before I order it's not one size on one side and something different on the other.

Answer by: Customer Support on May 3, 2025, 12:32 PM

Both sides are identical on this one. Each end is M42 x 2.0 male DIN tube, S30 size, so you're connecting matching tube ends on both sides. It's a symmetrical fitting all the way through, which makes it straightforward when you need to join two same-spec DIN tube lines inline.
