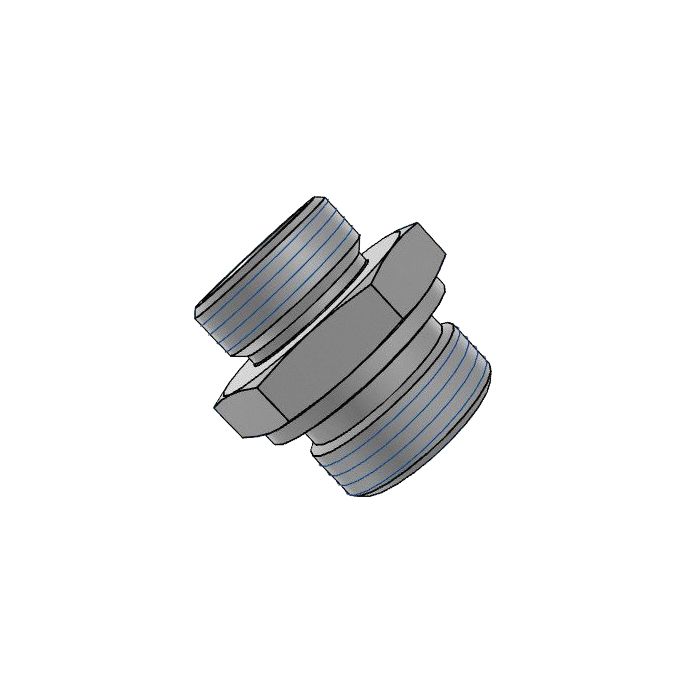

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This steel Adaptall fitting features a straight shape and facilitates connections between different thread types. It adapts a M12 x 1.5 DIN tube (L06 size) to a G 1/8 - 28 Bspp connection.

This Din X Mbspp Es Seal Complete is constructed from durable steel.

SKU: 5002L-06-02C

Supplier Part Number (MPN): 5002L-06-02C

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
23.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M12x1.5 x 1/8-28

Product Questions & Answers (2)

Question by: Melvin T on Apr 16, 2025, 8:12 AM
got a metric DIN tube end thats M12 x 1.5, will this fitting mate up to a 1/8 BSPP port?
Answer by: Customer Support on Apr 18, 2025, 6:07 AM
It’s a straight steel Adaptall adapter made to connect an M12 x 1.5 DIN tube end (L06 size, male) on one side to a G 1/8 - 28 BSPP male thread on the other side.
Question by: Harvey M on Feb 15, 2026, 3:31 PM
What thread types does this fitting connect, and what are the actual dimensions I'm working with?
Answer by: Customer Support on Feb 17, 2026, 3:12 PM
One end is M12 x 1.5 DIN tube, which is an L06 size, and the other end is G 1/8 - 28 BSPP. Both sides are male. Overall the fitting runs 23.5mm on the L1 length, 8.5mm on L2, and 8mm on L3, with a 14mm wrench flat across the hex. Straight profile, no angle to it.
