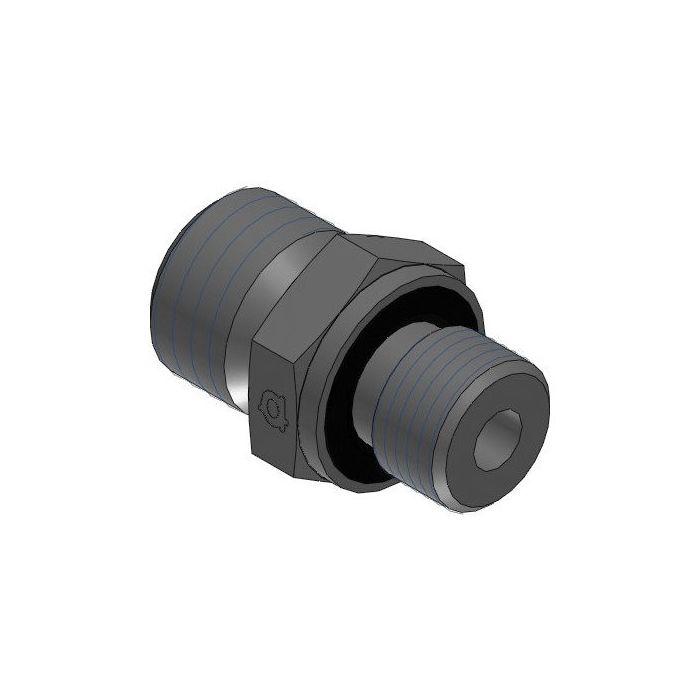

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall fitting connects a DIN tube end (M12 x 1.5 male) on one side to a BSPP male port (G 1/4 - 19) on the other, making it a practical solution for bridging metric DIN and British Standard hydraulic connections in a single compact component. The fitting carries an L06 size designation on the DIN side and a 1/4" size on the BSPP side.

The Din X Mbspp Es Seal design incorporates an elastic seal (ES) on the BSPP side, providing a reliable face seal connection without the need for additional sealing compounds. Overall length measures 29mm (L1), with secondary dimensions of 10mm (L2) and 12mm (L3), and a wrench width of 19mm, a compact profile suited for installations where space is a consideration.

SKU: 5002L-06-04

Supplier Part Number (MPN): 5002L-06-04

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
29 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M12x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Eddie M on Jun 14, 2025, 2:26 PM
Will this fitting hold up okay in a hydraulic system running around 2500 PSI?
Answer by: Customer Support on Jun 16, 2025, 6:59 AM
This fitting is made from steel and designed to connect DIN and BSPP hydraulic connections, so it should be suitable for standard hydraulic pressures, but we don't have a specific pressure rating available.
