Din X Mbspp Es Seal

Ask A Question

Description & Features

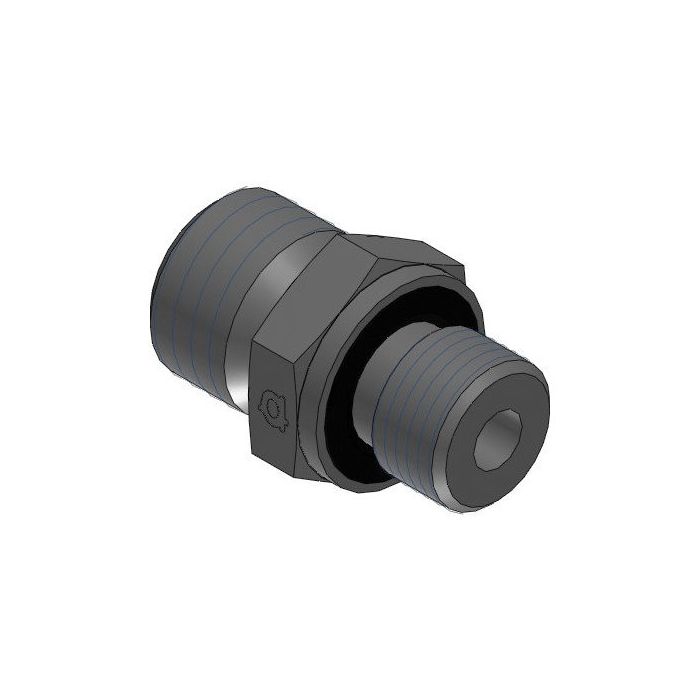

This straight Adaptall fitting is a Din X Mbspp Es Seal, featuring a steel construction for durability. It adapts a M14 X 1.5 Din Tube (Side 1) to a G 3/8 - 19 Bspp (Side 2) connection.

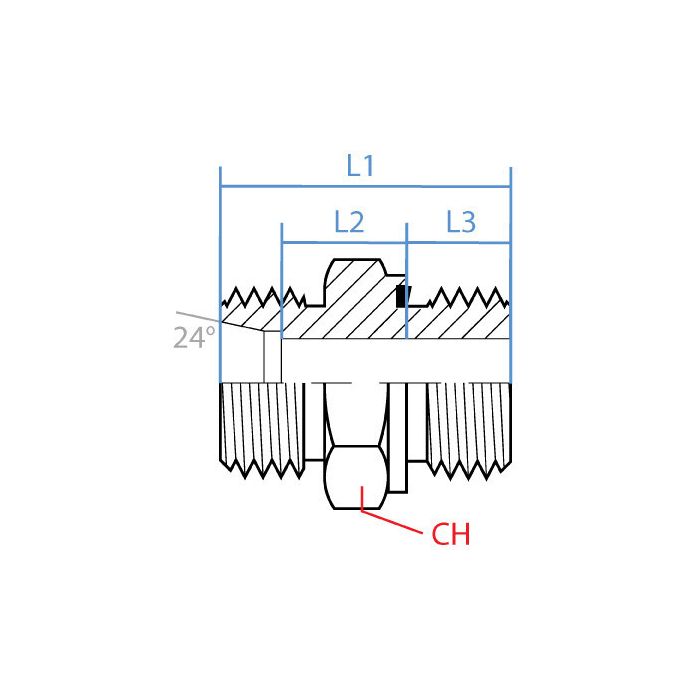

Key specifications include a Side 1 size of L08 and a Side 2 size of 3/8". The Adaptall Ch Width is 22mm, with an L1 Length of 30.5mm, L2 Length of 11.5mm, and L3 Length of 12mm.

SKU: 5002L-08-06

Supplier Part Number (MPN): 5002L-08-06

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
30.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
3/8-19 x M14x1.5

Product Questions & Answers (2)

Question by: Tommy R on Jul 22, 2025, 7:48 AM
So this fitting goes from a M14 to a 3/8" BSPP, right? Just wanna make sure I'm readin' it right.
Answer by: Customer Support on Jul 24, 2025, 7:26 AM
That's correct. This Adaptall fitting adapts from a M14 X 1.5 Din Tube (Side 1) to a G 3/8 - 19 Bspp (Side 2) connection.
Question by: Judy C on Jan 25, 2026, 11:59 AM
Trying to hook a M14 x 1.5 DIN tube end over to a G 3/8-19 BSPP port, is that what this fitting is for?
Answer by: Customer Support on Jan 27, 2026, 6:29 AM
For adapting between two different thread standards, this straight Adaptall fitting takes a M14 x 1.5 DIN tube connection on Side 1 and a G 3/8 - 19 BSPP male connection on Side 2.
