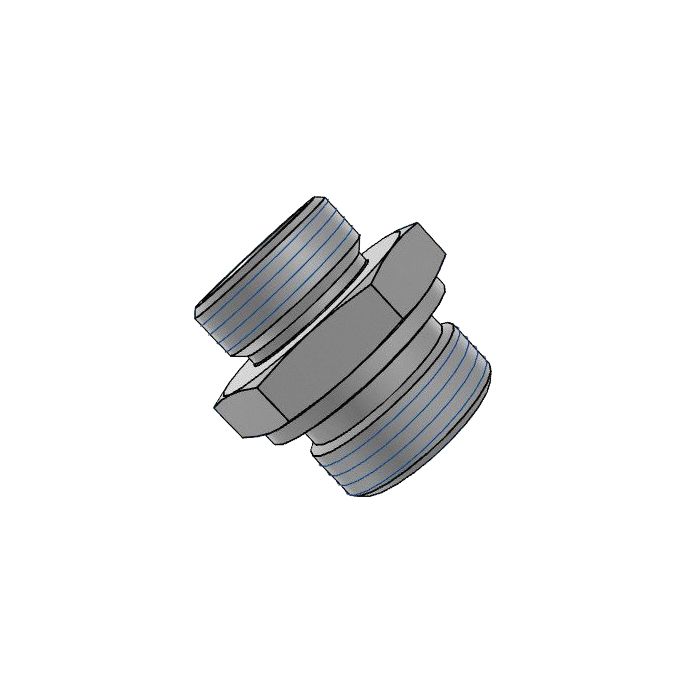

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight Adaptall fitting adapts DIN tube to Bspp connections. It features a M14 X 1.5 DIN tube end with a male gender and L08 size, alongside a G 3/8 - 19 Bspp end, also with a male gender and 3/8" size.

Manufactured from durable steel, this Din X Mbspp Es Seal Complete adapter is designed with an Adaptall Ch Width of 22mm, an Adaptall L1 Length of 30.5mm, an Adaptall L2 Length of 11.5mm, and an Adaptall L3 Length of 12mm.

SKU: 5002L-08-06C

Supplier Part Number (MPN): 5002L-08-06C

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
30.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
3/8-19 x M14x1.5

Product Questions & Answers (3)

Question by: Sherry A on Nov 22, 2025, 2:27 PM
what's the thread spec on the BSPP side of this fitting? trying to match up to a G 3/8 port on a manifold block
Answer by: Customer Support on Nov 23, 2025, 6:19 PM
The BSPP end on this adapter is a G 3/8 - 19 male thread, which is a standard 3/8 inch BSPP size. That G 3/8 - 19 callout means it'll mate up directly with a female G 3/8 BSPP port, so if your manifold block is spec'd that way, you're looking at the right fitting.
Question by: Lance C on Sep 15, 2025, 6:23 AM
got a hose end that’s G 3/8 - 19 BSPP male, and i need to land it on a DIN tube connection. is this the right adapter?
Answer by: Customer Support on Sep 16, 2025, 7:42 AM
For tying a DIN tube end to a BSPP connection, this fitting is made to bridge M14 x 1.5 DIN tube on one side to a G 3/8 - 19 BSPP male on the other. Both ends are male, and the shape is straight.
Question by: Bobby H on Jun 21, 2025, 9:07 AM
So, this fitting goes from DIN to BSPP, right? Just want to make sure I'm understanding that correctly.
Answer by: Customer Support on Jun 23, 2025, 6:34 AM
That's right, this Adaptall fitting is designed to adapt DIN tube connections to BSPP connections. It's handy when you're working with different standards.
