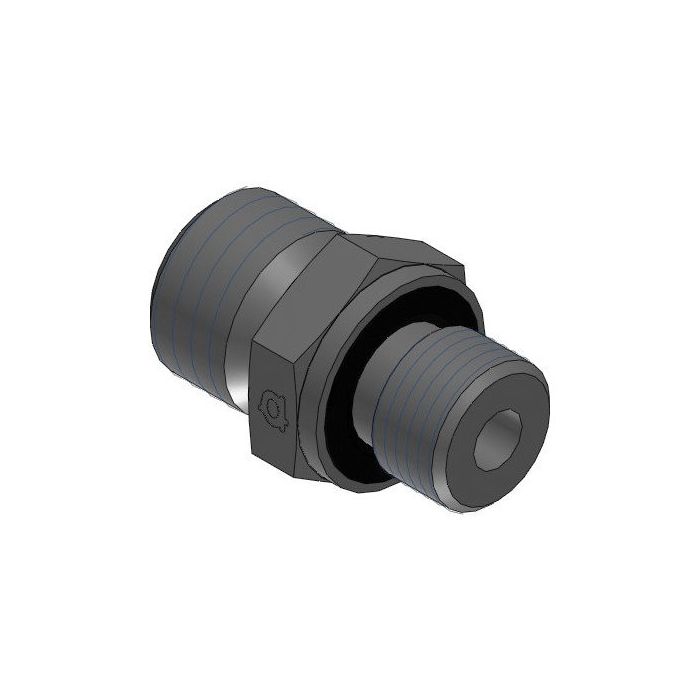

Din X Mbspp Es Seal

Description & Features

A straight steel adapter designed to connect a DIN tube fitting on one end to a male BSPP port on the other, the Din X Mbspp Es Seal suits hydraulic systems requiring a reliable transition between these two common thread standards. The DIN side features an M16 x 1.5 male thread (L10), while the BSPP side carries a G 1/4 - 19 male thread in 1/4" size, with an ES (external seal) configuration for a secure, leak-resistant connection.

Manufactured by Adaptall in steel, this straight adapter measures 30mm in overall length (L1), with an 11mm L2 and 12mm L3 dimension, and a 19mm CH width. Its compact straight profile makes it practical where direct inline port-to-port connections are needed across DIN and BSPP hydraulic circuits.

SKU: 5002L-10-04

Supplier Part Number (MPN): 5002L-10-04

Alternate Part Numbers: 5002L-1004

Specifications

Brand adapt-all	Connection Size 2 1/4 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5002 Series	Thread Size M16x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Lyle G on Nov 13, 2025, 8:11 PM

Will this here adapter hold up okay in a hydraulic system running around 2500 psi?

Answer by: Customer Support on Nov 15, 2025, 3:30 PM

This steel adapter is well-suited for hydraulic systems and should handle 2500 psi without issue, given its robust construction for connecting DIN to BSPP ports.
