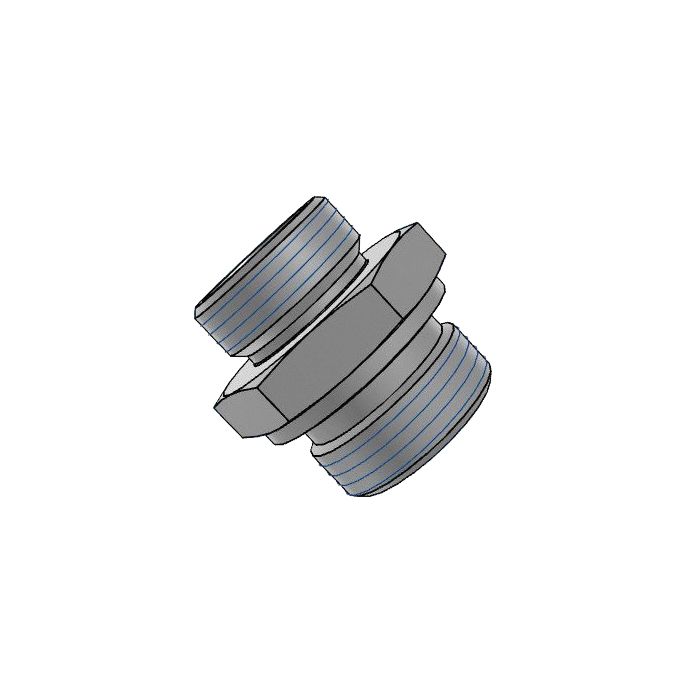

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall fitting connects a DIN tube end to a male BSPP port in a single, compact assembly. Side one presents an M16 x 1.5 male DIN tube connection (L10 size), while side two carries a G 3/8-19 male BSPP thread in 3/8" size, making it well suited for hydraulic circuits that bridge DIN and BSPP standards.

The Din X Mbspp Es Seal Complete incorporates an ES (edge seal) configuration, providing a reliable sealing method at the BSPP end. With a channel width of 22mm and an overall L1 length of 31.5mm, the fitting is dimensionally compact while accommodating standard L10 tube sizing. It is a practical solution where DIN metric tube connections must interface with inch-based BSPP ported components.

SKU: 5002L-10-06C

Supplier Part Number (MPN): 5002L-10-06C

Specifications

Brand
adapt-all
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
31.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
3/8-19 x M16x1.5

Product Questions & Answers (1)

Question by: Norm K on Jul 27, 2025, 9:48 PM
Got a manifold block with G 3/8 BSPP ports and my tubing runs are metric DIN L10, this fitting bridge that gap in one piece?
Answer by: Customer Support on Jul 29, 2025, 6:25 AM
That's what it's built for. One end is an M16 x 1.5 male DIN tube connection sized for L10 tubing, and the other is a G 3/8-19 male BSPP thread. Steel construction, straight configuration, so you're getting a clean inline adapter without stacking multiple fittings together. The ES edge seal at the BSPP end handles sealing on that side of the connection.
