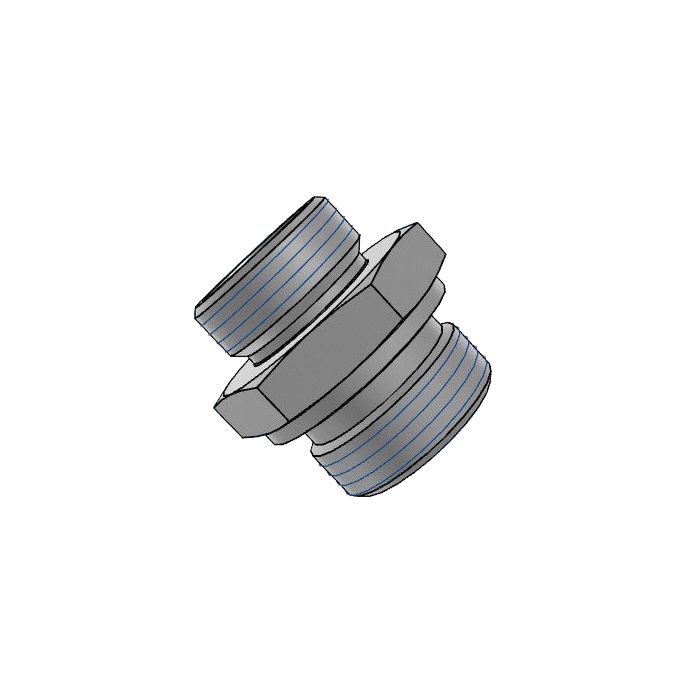

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This straight steel adapter features a Din Tube (M18 x 1.5) connection on one side and a 1/4" Bspp connection on the other. The Din side has an L1 length of 31.5mm, an L2 length of 12.5mm, and an L3 length of 12mm, with a wrench flat of 22mm.

The Din X Mbspp Es Seal Complete is suitable for various hydraulic applications.

SKU: 5002L-12-04C

Supplier Part Number (MPN): 5002L-12-04C

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
31.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M18x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Jerry S on Dec 13, 2025, 8:10 AM
got a DIN tube fitting on my hydraulic line that needs to tie into a 1/4 BSPP port, this the right piece for that?
Answer by: Customer Support on Dec 14, 2025, 5:38 PM
That's what this adapter is built for. One end is a male DIN Tube connection at M18 x 1.5, and the other is a male 1/4" BSPP. Both sides are male, so keep that in mind when you're checking what you've got on each end of your setup. It's a straight configuration, so no angling involved, just a direct inline connection between those two thread types.
