Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

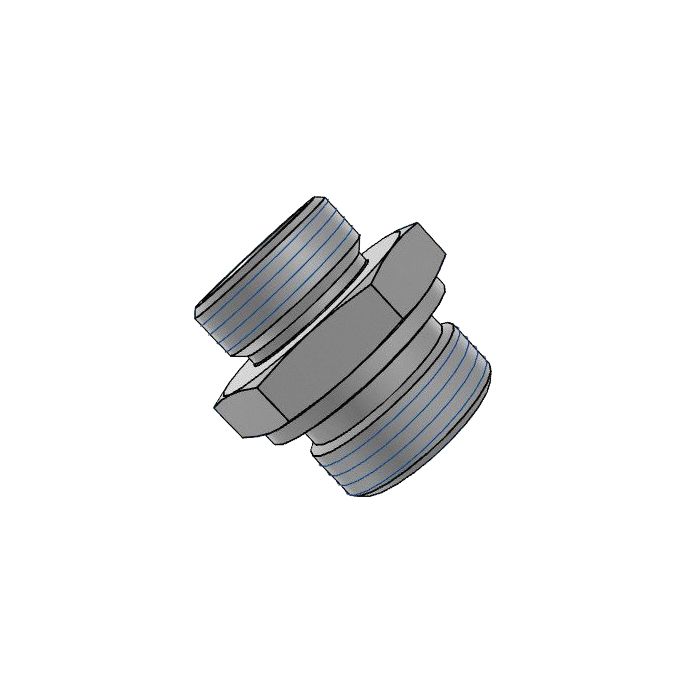

This straight steel adapter features a Din tube connection on one end and a Bspp connection on the other. The Din connection is M18 x 1.5, size L12, while the Bspp connection is G 1/2 - 14, size 1/2". The Adaptall Din X Mbspp Es Seal Complete is designed for reliable performance in demanding hydraulic applications.

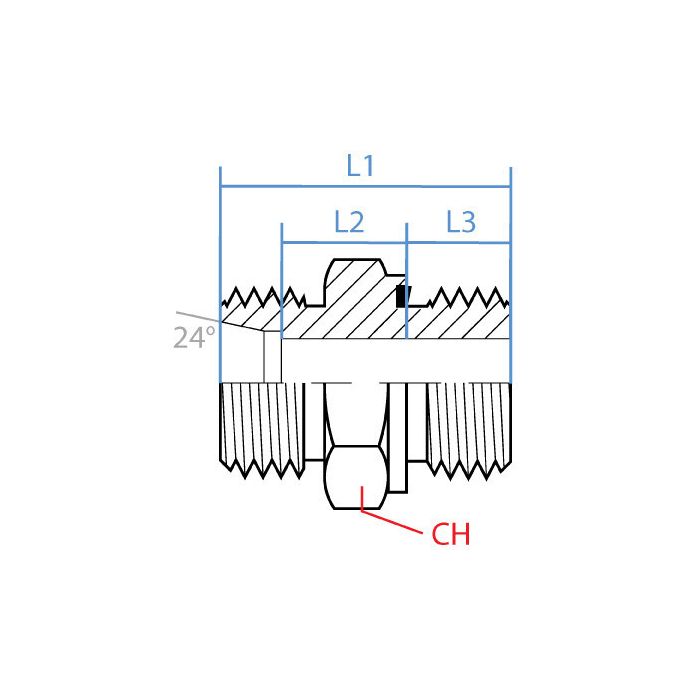

The adapter's construction includes a 27mm Adaptall Ch Width, a 34mm Adaptall L1 Length, a 13mm Adaptall L2 Length, and a 14mm Adaptall L3 Length.

SKU: 5002L-12-08C

Supplier Part Number (MPN): 5002L-12-08C

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
1/2-14 x M18x1.5

Product Questions & Answers (3)

Question by: Roger M on Nov 27, 2025, 10:54 AM
got a DIN tube nut that's M18 x 1.5 on one side and i need to land it into a 1/2 inch BSPP port. is this the right adapter?
Answer by: Customer Support on Nov 29, 2025, 6:43 AM
For that kind of hookup, it matches up as a straight steel adapter with a DIN tube male end in M18 x 1.5 (size L12) and a BSPP male end in G 1/2 - 14 (size 1/2 inch).
Question by: Lee A on Jun 23, 2025, 8:25 AM
adapter's got a DIN tube end on one side and BSPP on the other, that the right fit for connecting into a G 1/2 port?
Answer by: Customer Support on Jun 25, 2025, 6:28 AM
Yeah, that lines up. The BSPP side on this one is G 1/2 - 14, which is a male connection sized at 1/2 inch. So if you've got a female G 1/2 BSPP port you're threading into, this should mate up fine. The DIN tube end is M18 x 1.5, size L12, so just make sure your tube and fitting on that side match those specs before you put it in.
Question by: Hugh C on Feb 23, 2026, 7:15 AM
What kind of steel is this fitting made from?
Answer by: Customer Support on Feb 24, 2026, 9:37 AM
This adapter is made from steel, which should hold up well in most hydraulic applications.
