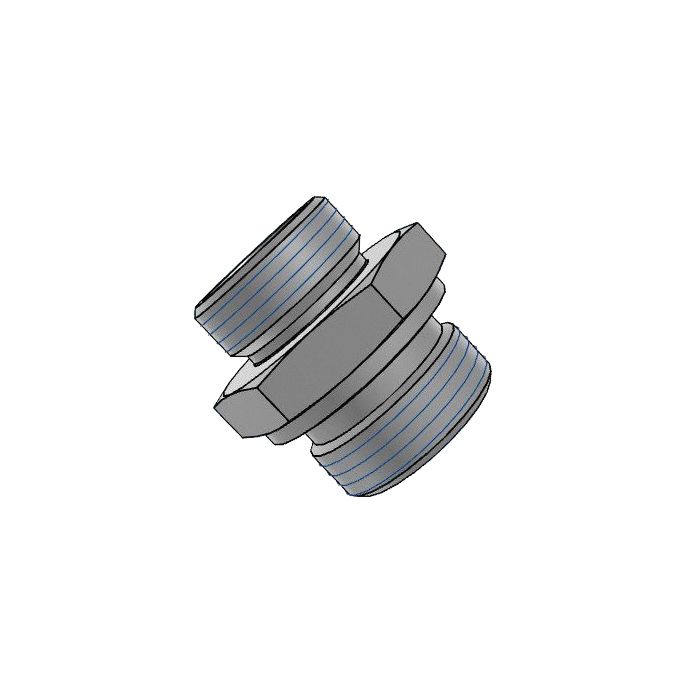

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall fitting connects a DIN tube end (M22 x 1.5 male, L15 series) on one side to a male BSPP port (G 1/2 - 14) on the other, bridging two common hydraulic connection standards in a single component. The Din X Mbspp Es Seal Complete includes an ES (elastomeric seal) configuration, providing a reliable face seal at the BSPP end to minimize the risk of leakage at the connection point.

With a body width of 24mm and an overall L1 length of 32.5mm, this fitting suits compact installations where space between connection points is limited. The L2 and L3 dimensions of 14mm and 12mm respectively reflect the thread engagement lengths on each end. Suitable for hydraulic systems requiring a transition between DIN metric tube fittings and British Standard Parallel Pipe ports.

SKU: 5002L-15-08C

Supplier Part Number (MPN): 5002L-15-08C

Specifications

Brand
adapt-all
Connection Size 1
L15
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
32.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Ricky P on Dec 20, 2025, 3:02 PM
So this thing goes from a DIN tube to a BSPP port, right? Just want to make sure I'm understanding that correctly.
Answer by: Customer Support on Dec 22, 2025, 6:19 AM
That's exactly right. This Adaptall fitting is designed to connect a DIN tube end (M22 x 1.5 male, L15 series) to a male BSPP port (G 1/2 - 14).
