Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

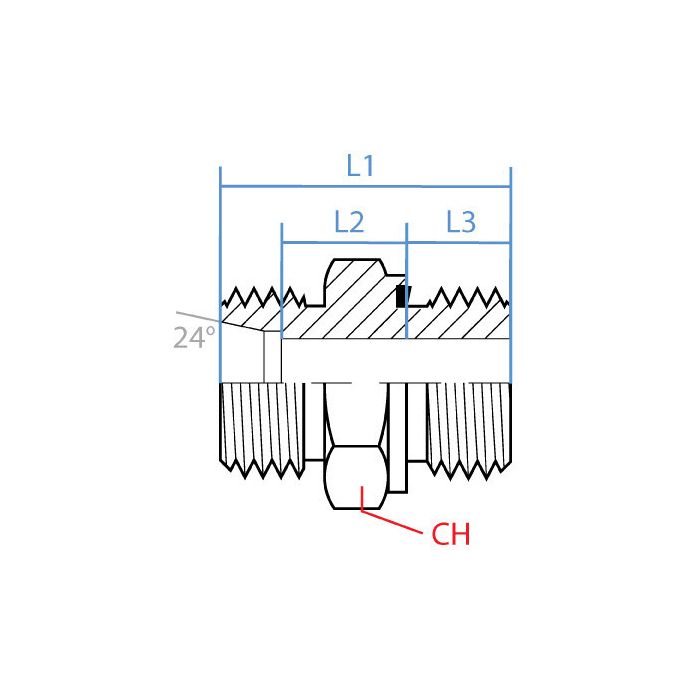

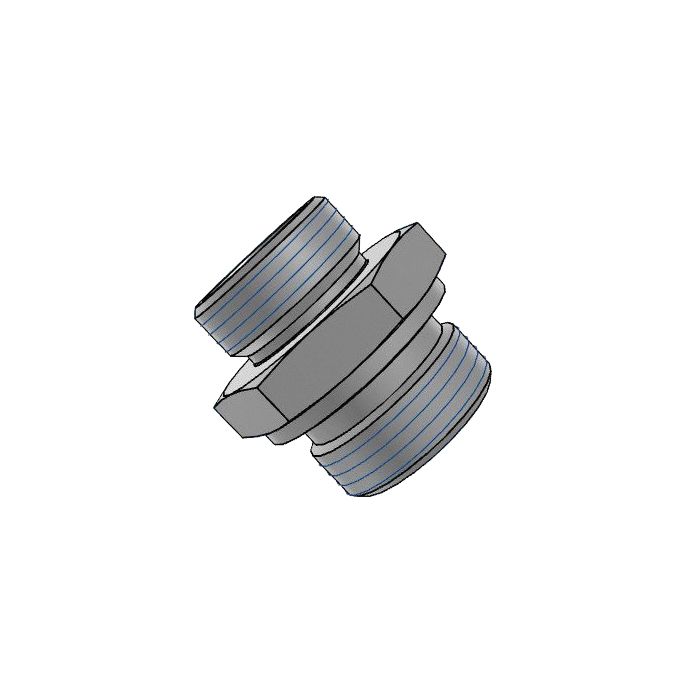

This straight Adaptall fitting features a Din Tube end and a Bspp end. The Din end has a M26 X 1.5 thread, while the Bspp end measures 1/2". It is constructed from steel for durability in demanding hydraulic applications.

This Din X Mbspp Es Seal Complete provides a secure and reliable connection.

SKU: 5002L-18-08C

Supplier Part Number (MPN): 5002L-18-08C

Alternate Part Numbers: 5002L-18-08-C

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
36 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M26x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Roger W on Mar 24, 2026, 9:12 PM
Will this fitting hold up okay in a hydraulic system on a farm tractor, or is it more for lighter-duty stuff?
Answer by: Customer Support on Mar 26, 2026, 9:07 PM
Constructed from steel, this fitting provides a durable and reliable connection suitable for demanding hydraulic applications.
Question by: Carl G on Oct 13, 2025, 4:56 PM
what's the thread size on the DIN end of this fitting, and does it come with the seal already on it?
Answer by: Customer Support on Oct 15, 2025, 2:33 PM
The DIN end runs an M26 X 1.5 thread, and yes, the "ES Seal Complete" in the name means the end seal is included with the fitting. Nothing extra to source separately on that end.
