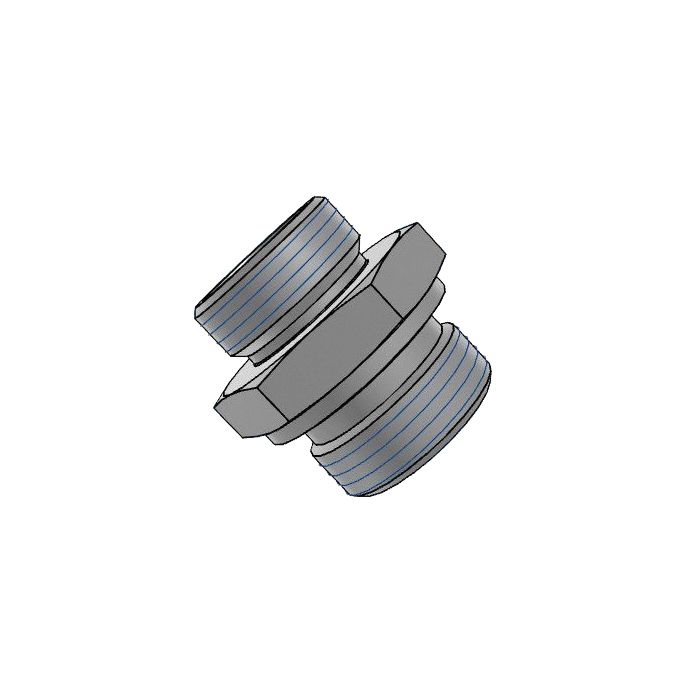

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This Adaptall fitting, described as Din X Mbspp Es Seal Complete, features a straight shape and is constructed from durable steel. It is designed with a Side 1 Din Tube connection of M26 X 1.5 and L18 size. The Side 2 connection is a Bspp type, sized at 3/4" with a G 3/4 - 14 callout.

The Adaptall fitting has an Adaptall Ch Width of 32mm, an Adaptall L1 Length of 38mm, an Adaptall L2 Length of 14.5mm, and an Adaptall L3 Length of 16mm.

SKU: 5002L-18-12C

Supplier Part Number (MPN): 5002L-18-12C

Alternate Part Numbers: 5002L-18-12-C

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M26x1.5 x 3/4-14

Product Questions & Answers (3)

Question by: Roy B on Dec 6, 2025, 6:26 PM
Will this fitting hold up alright if I'm using it with some hydraulic oil?
Answer by: Customer Support on Dec 7, 2025, 7:50 PM
Designed to work with hydraulic systems, this fitting is constructed from durable steel. So, using it with hydraulic oil should be perfectly fine.
Question by: Lyle W on Dec 20, 2025, 6:17 AM
trying to hook a DIN tube line to a BSPP port, is this the right adapter if my tube nut is M26 x 1.5 L18 and the port is 3/4 BSPP?
Answer by: Customer Support on Dec 22, 2025, 6:46 AM
For that mix of ends, it matches up. Side 1 is a DIN tube male in size L18 with an M26 x 1.5 thread, and Side 2 is a BSPP male at 3/4 inch with a G 3/4 - 14 thread callout. It is a straight steel Adaptall fitting.
Question by: Rick H on Apr 26, 2025, 9:26 AM
what's the thread size on the DIN side of this fitting, and is it the L18 designation that determines that?
Answer by: Customer Support on Apr 28, 2025, 6:13 AM
The DIN tube side runs M26 X 1.5 thread, and yes, L18 is the size designation tied to that connection. Those two work together to identify the correct tube series, so both details matter when you're confirming fit.
