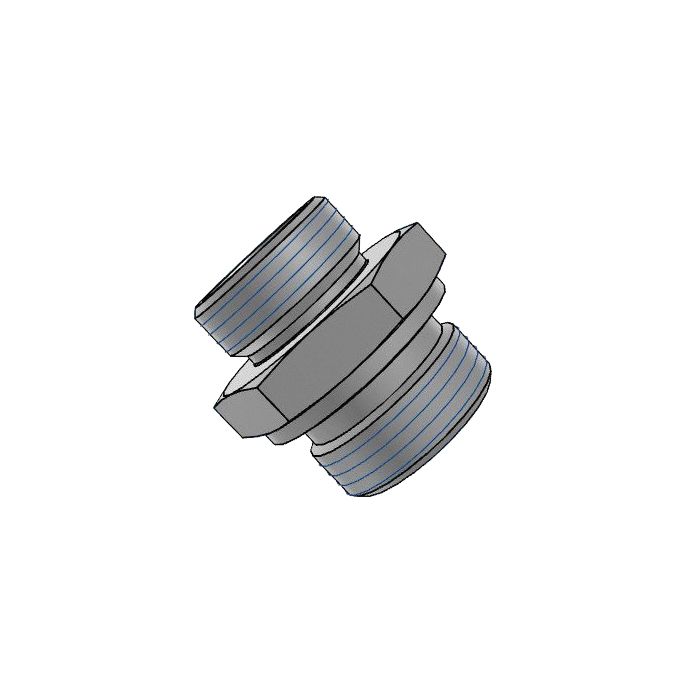

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

This Adaptall fitting is a complete DIN to MBSPP ES seal. This straight adapter features a M36 x 2.0 DIN tube connection on one side, size L28. The other side features a G 3/4-14 male Bspp connection with a 3/4" size.

The Din X Mbspp Es Seal Complete is constructed of steel for durability and reliable performance in demanding hydraulic applications.

SKU: 5002L-28-12C

Supplier Part Number (MPN): 5002L-28-12C

Specifications

Brand
adapt-all
Connection Size 1
L28
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
41 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M36x2 x 3/4-14

Product Questions & Answers (2)

Question by: Terry G on Feb 17, 2026, 7:29 AM
trying to swap a line over, is this the straight adapter that goes from M36 x 2.0 DIN tube (L28) to a 3/4 BSPP male?
Answer by: Customer Support on Feb 18, 2026, 10:59 AM
You’ve got the right idea. One end is a M36 x 2.0 DIN tube connection in size L28, and the other end is a G 3/4-14 male BSPP connection with a 3/4 inch size, and it’s a straight steel adapter.
Question by: Ronnie J on Sep 6, 2025, 5:52 PM
Will this fitting hold up to typical hydraulic pressures without leaking?
Answer by: Customer Support on Sep 8, 2025, 11:27 AM
Constructed from steel, this Adaptall fitting is designed for reliable performance in demanding hydraulic applications.
