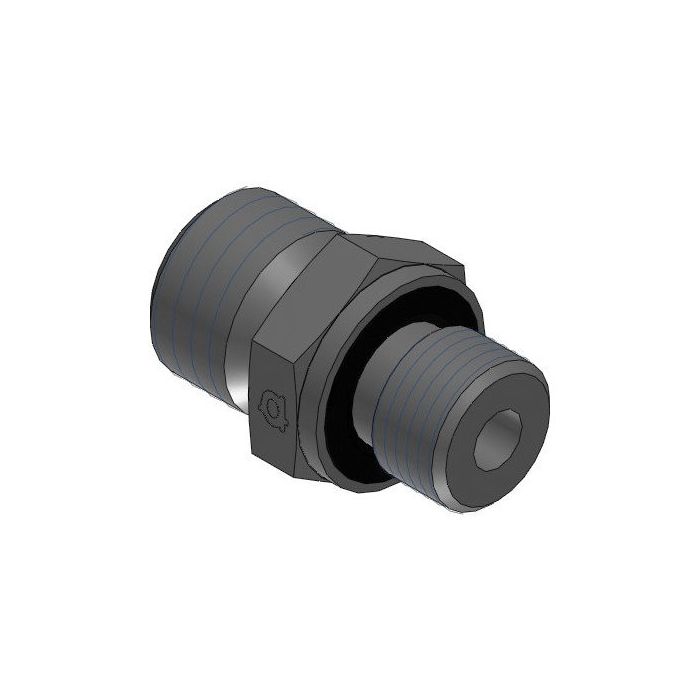

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

A straight steel adapter connecting a DIN tube fitting on one end to a male BSPP port on the other, the Din X Mbspp Es Seal is designed for use where DIN-standard tube connections must interface with BSPP-threaded ports. The DIN side carries an M36 x 2.0 thread in an L28 configuration, while the BSPP side presents a 1-inch (G 1 – 11) male thread with an ES face seal for a reliable, leak-resistant connection.

Manufactured from steel in a straight profile, this Adaptall adapter measures 43mm in overall length (L1), with an L2 of 17.5mm, L3 of 18mm, and a body width of 41mm. The ES seal design suits hydraulic circuits where face seal integrity is a priority. Adaptall's two-piece adapter system allows this fitting to be assembled with a range of compatible bodies, offering flexibility across multiple hydraulic circuit configurations.

SKU: 5002L-28-16

Supplier Part Number (MPN): 5002L-28-16

Specifications

Brand
adapt-all
Connection Size 1
L28
Connection Size 2
1 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
43 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M36x2 x 1-11

Product Questions & Answers (3)

Question by: Neal H on Nov 30, 2025, 4:10 PM
trying to hook a DIN tube end into a 1 inch BSPP port, is this the right adapter?
Answer by: Customer Support on Dec 2, 2025, 6:14 AM
For that kind of mix-and-match connection, it’s a straight steel adapter that goes from a DIN tube fitting on one side to a male BSPP port on the other. The DIN side is M36 x 2.0 in an L28 configuration, and the BSPP side is a 1 inch male thread listed as G 1 - 11 with an ES face seal.
Question by: Ralph P on Dec 31, 2025, 5:00 PM
What exactly is the thread setup on both ends of this fitting? Trying to match it up to what I already got on the machine.
Answer by: Customer Support on Jan 2, 2026, 7:06 AM
One end runs an M36 x 2.0 DIN tube thread in an L28 configuration, and the other end is a 1-inch male BSPP thread, which carries a G 1 - 11 designation. The BSPP side uses an ES face seal, so you get a solid leak-resistant connection where the fitting seats against the mating port face. Both sides are male, and the body is straight, so there's no angle to account for when you're planning the layout.
Question by: Dale A on Sep 14, 2025, 8:28 AM
What size is the thread on the BSPP side of this adapter?
Answer by: Customer Support on Sep 15, 2025, 7:51 PM
That side has a 1-inch BSPP male thread, which is designated as G 1 – 11.
