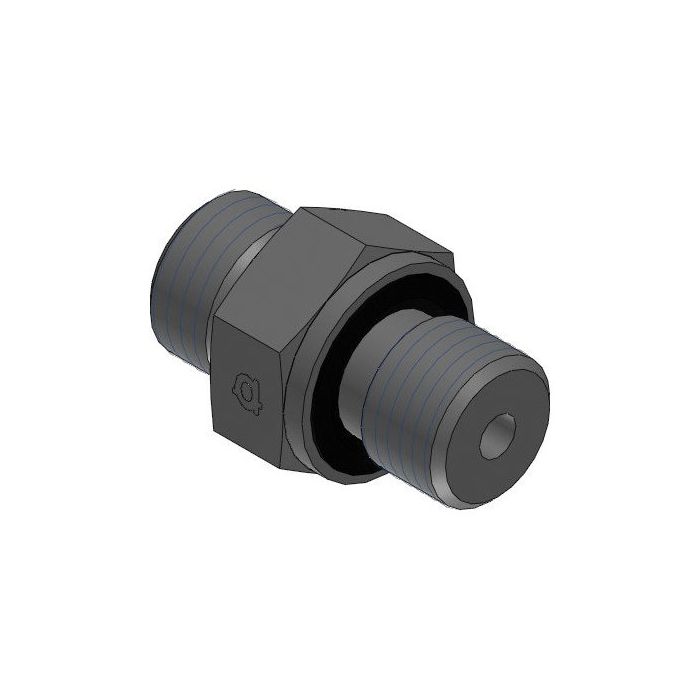

main product photo

Din X Mbspp Es Seal

Ask A Question

Description & Features

This straight Adaptall fitting features a Din tube connection on Side 1 and a Bspp connection on Side 2. Side 1 is a male M14 X 1.5 Din tube fitting (S06 size), while Side 2 is a male G 1/4 - 19 Bspp fitting with a 1/4" size.

The Din X Mbspp Es Seal is constructed of steel. Adaptall Ch Width is 19mm. Adaptall L1 Length is 32mm. Adaptall L2 Length is 13mm. Adaptall L3 Length is 12mm.

SKU: 5002S-06-04

Supplier Part Number (MPN): 5002S-06-04

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Brent L on May 28, 2025, 3:05 PM
Will this fitting work for connecting a DIN tube to a BSPP fitting?
Answer by: Customer Support on May 30, 2025, 6:19 AM
Yes, this Adaptall fitting is designed for exactly that purpose, with a DIN tube connection on one side and a BSPP connection on the other.
Question by: Joyce C on Jul 16, 2025, 1:13 PM
trying to hook a DIN tube line to a BSPP port, is this the right adapter?
Answer by: Customer Support on Jul 18, 2025, 6:04 AM
For that kind of hookup, it is a straight steel Adaptall fitting with a male M14 x 1.5 DIN tube connection on one end (S06) and a male G 1/4 - 19 BSPP connection on the other end (1/4 inch size).
Question by: Steve P on Jul 28, 2025, 9:32 PM
What kind of connection does each end of this fitting use? Trying to figure out if it'll work between two pieces of equipment with different thread types.
Answer by: Customer Support on Jul 30, 2025, 2:33 PM
One end is a male M14 x 1.5 DIN tube fitting, which is the S06 size. The other end is a male G 1/4-19 BSPP fitting at 1/4 inch. So if you've got a DIN tube port on one side and a BSPP port on the other, this straight adapter is built to bridge exactly that combination.
