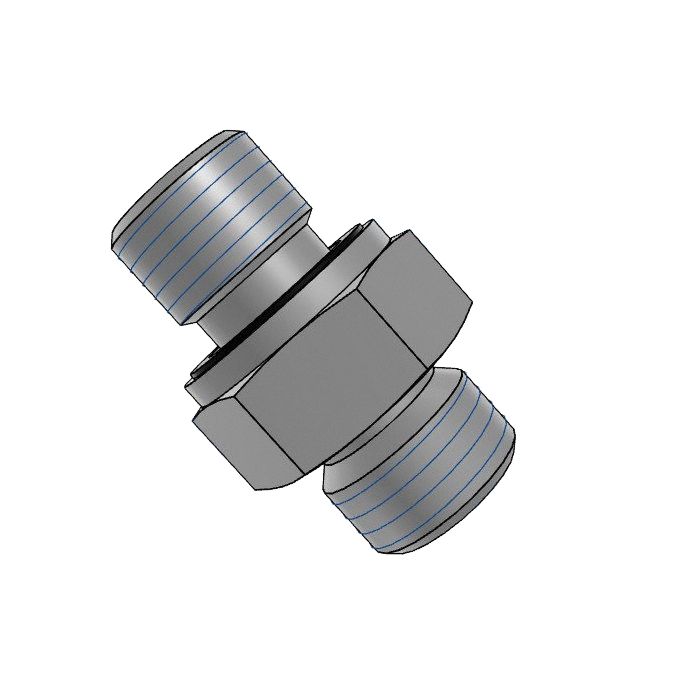

main product photo

Din X Mbspp Es Seal Complete

Ask A Question

Description & Features

A straight steel adapter designed to connect a DIN tube fitting on one end to a male BSPP port on the other, this Adaptall Din X Mbspp Es Seal Complete provides a reliable crossover between two commonly used hydraulic connection standards. The DIN side features an M14 x 1.5 male thread (S06), while the BSPP side carries a G 1/4 - 19 male thread in 1/4" size, making it well suited for integrating DIN-standard tube circuits with BSPP-ported components such as valves, manifolds, and hydraulic power units.

Constructed from steel, the adapter measures 32mm in overall length (L1), with a 13mm L2 and 12mm L3 dimension, and a 19mm wrench width. The ES seal configuration provides an elastomeric face seal on the BSPP end, supporting leak-free connections in demanding hydraulic circuits. Supplied by Adaptall, this fitting is part of their broad range of interchangeable hydraulic adapters.

SKU: 5002S-06-04C

Supplier Part Number (MPN): 5002S-06-04C

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5002 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (2)

Question by: Dean G on Jun 30, 2025, 8:09 AM
got a BSPP-ported valve on a power unit and need to tie it into a DIN tube circuit, this the right adapter for that kind of crossover?
Answer by: Customer Support on Jul 1, 2025, 12:02 PM
That's the kind of situation this fitting covers. One end is M14 x 1.5 DIN tube (S06), and the other end is G 1/4-19 BSPP male in 1/4" size, so it bridges those two standards in a single straight adapter. The BSPP side uses an elastomeric face seal, which keeps things leak-free at the connection point. Steel construction, 32mm overall length, so it's compact enough to fit in tight hydraulic connections arrangements around manifolds and power units without adding much stick-out.
Question by: Hubert W on Oct 23, 2025, 7:34 PM
got a din tube line with M14 x 1.5 on it, will this adapter mate up to a 1/4 BSPP port?
Answer by: Customer Support on Oct 24, 2025, 8:39 PM
For tying those two standards together, it has an M14 x 1.5 male DIN tube end (S06) on one side and a G 1/4 - 19 male BSPP end on the other, so it fits a 1/4 inch BSPP female port.
